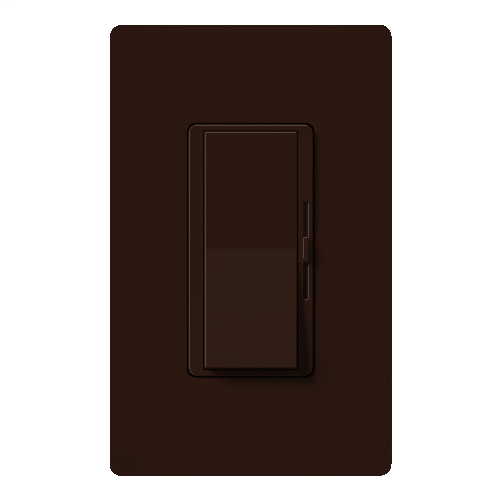

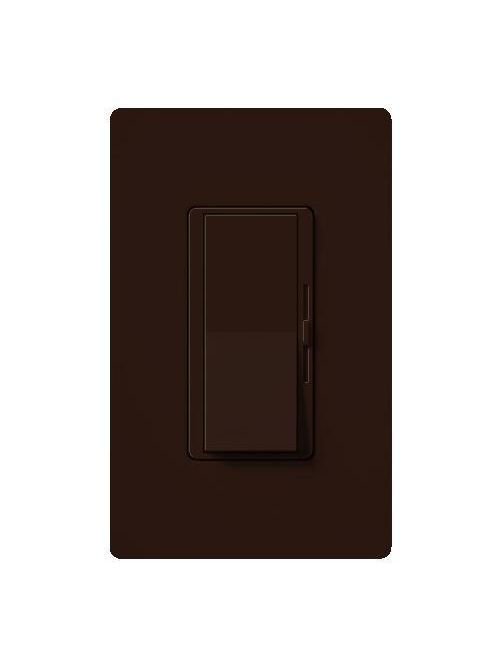

DIVA FLUOR CTRL 120V 3WAY BR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$137.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVF-103P-BR
North Coast Part # 266977

Features

  • Controls 8 A 3-wire LED driver or fluorescent ballast loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 960 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Application: Lighting Control
  • Type: Dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.31 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: US

Categories

Overview

UPC 02755769727
Item Long Description 3-wire fluorescent ballast/LED driver dimmer for use with Hi-lume 3D and EcoSystem ballasts, and Hi-lume 1% and Hi-lume Premier 0.1% LED drivers. Paddle turns on/off. Slide up to brighten, down to dim. Preset dimmer. Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening. Gloss finishes.
GTiN 00027557697279
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Brown
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way/Single-Pole,Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Leads
Wattage 960 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Paddle Switch
Amperage 8 Amp
Max Wattage 1000 W
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility 3-wire Lutron LED/Ballast
Sub Brand Diva
