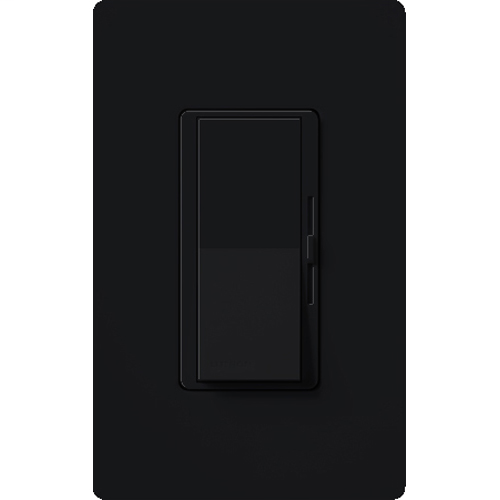

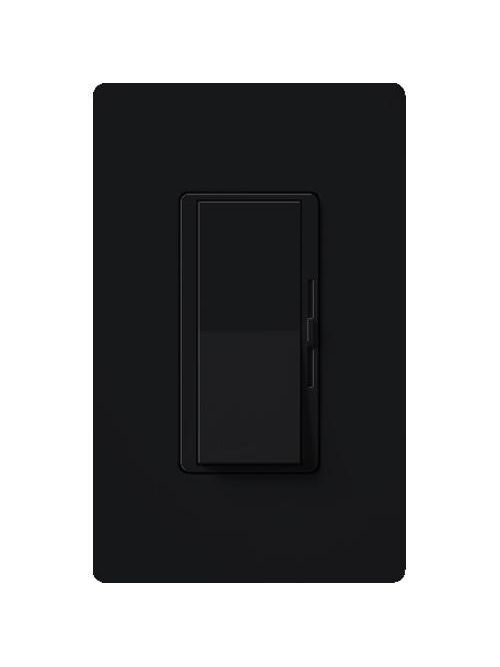

LUT DVSCCL-153P-MN DIVA CFL/LED BOX
$47.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVSCCL-153P-MN
North Coast Part # 668468

Features

  • Controls 150 W dimmable LED/CFL (screw-base), 600 W incandescent, or halogen loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Specifications

  • Wattage: 600 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Type: Dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.2 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Environmental Conditions: Indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: MX

Overview

UPC 02755700314
GTiN 00027557003148
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3 Way, Paddle
Material Plastic/Metal
Applications For Dimmable LED/CFL (Screw Base), Incandescent or Halogen Lighting Control
Mounting Type Wallbox
Country of Origin Mexico
Standard NOM,CSA,UL
Frequency 60 Hz
Connection Type Wire Lead
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 600 W Incandescent/Halogen, 150 W LED/CFL
TC Connection Wire Leads
Actuator Paddle Switch
Blade Dimensions 119 x 75 mm
Environmental Conditions Indoor Use Only
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
