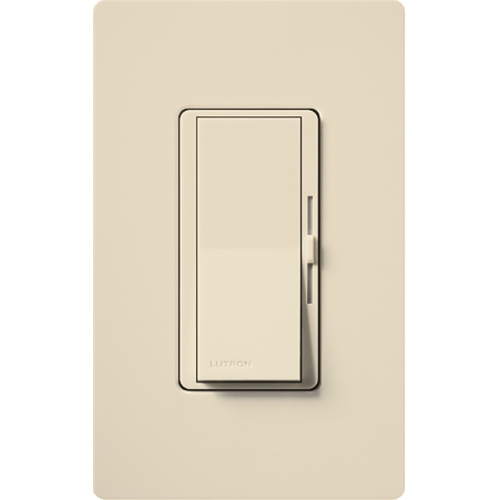

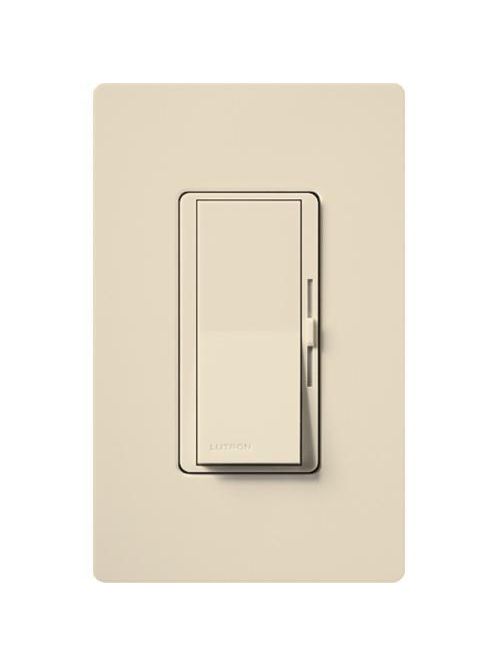

LUT DVSCCL-253P-ES DIVA CFL/LED BOX

Features

• Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
• Paddle turns on/off
• Slide up to brighten, down to dim
• Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Specifications

• Wattage: 600 W
• Sub Brand: Diva
• Mounting: Wallbox
• Brand Name: Lutron
• Enclosure: Plastic
• Number Of Poles: 1
• Insulation: Plastic
• Voltage Rating: 120 V
• Connection: Wire Leads
• Actuator: Paddle switch
• Frequency Rating: 60 Hz
• Material: Plastic/Metal
• Application: Lighting Control
• Type: Dimmer, 3-way/single-pole
• Pack Description: Box
• Pack Type: EA
• Number of Sub Packs: 1
• Total Units Imperial: 1 EA
• Gross Weight per Pack Imperial: 0.2 L
• Length Imperial: 2.25 IN
• Width Imperial: 2.25 IN
• Height Imperial: 4.5 IN
• Standard: UL, CSA, NEMA SSL-7A Type 2
• Size: 4.69 in (119 mm) x 2.94 in (75 mm)
• Environmental Conditions: Indoor use only
• Operating Temperature: 0 to 40 degrees Celsius
• Country of Origin: MX
