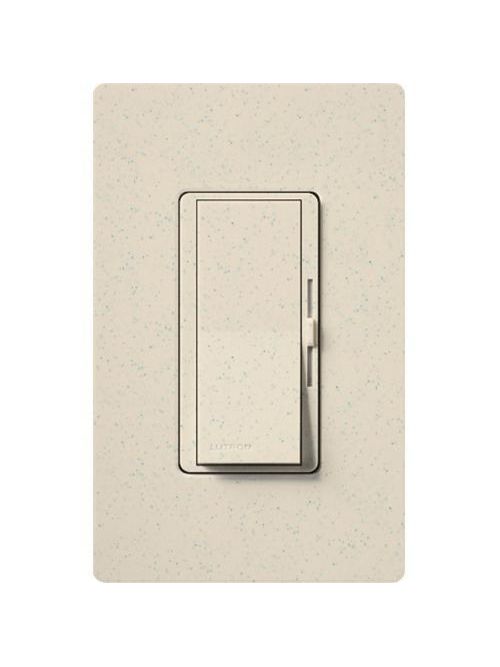

LUT DVSCCL-253P-LS DIVA CFL/LED BOX
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$84.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVSCCL-253P-LS
North Coast Part # 1164397

Features

  • Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Specifications

  • Wattage: 600 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Type: Dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.2 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Standard: UL, CSA, NEMA SSL-7A Type 2
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Environmental Conditions: Indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: MX

Overview

UPC 78427609226
Item Long Description Diva satin dimmer for 250W CFL/LED, 600W inc/hal, or Lutron Hi-Lume A-Series LTE LED Driver in limestone
GTiN 00784276092265
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way/Single-Pole,Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Frequency 60 Hz
Connection Type Wire Leads
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Paddle Switch
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
Standard CSA,NEMA SSL-7A Type 2,UL
Environmental Conditions Indoor Use Only
