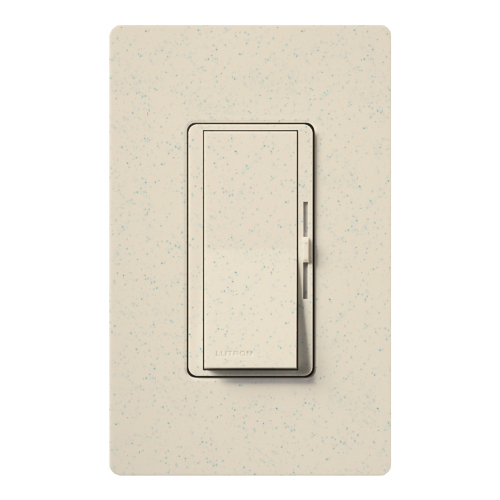

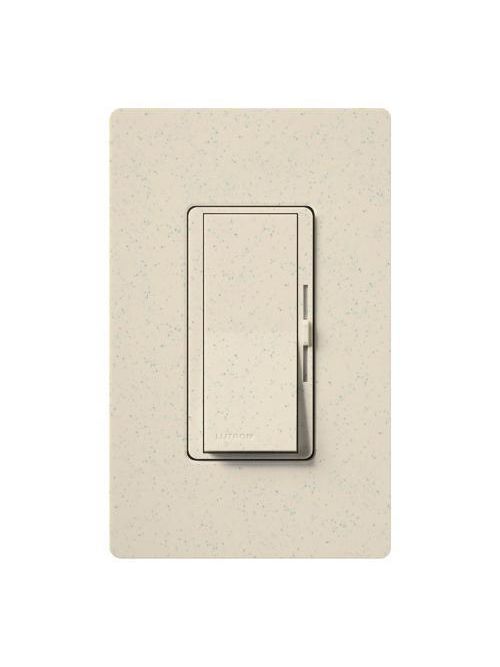

Lutron Electronics DVSCLV-10P-LS 800 W 120 Volt Limestone 1-Pole Magnetic Low Voltage Paddle Switch Preset Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$137.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVSCLV-10P-LS
North Coast Part # 337454

Features

  • Controls 1000 VA (800 W) magnetic low-voltage loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 800 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Type: Dimmer, single-pole
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.32 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: US

Categories

Overview

UPC 02755746468
Item Long Description Diva Dimmer - Satin Finish, Magnetic Low-Voltage, Single-pole, 120V/1000VA (800W) in limestone
GTiN 00027557464680
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Limestone
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Dimmer,Single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Leads
Wattage 800 Watt
Family Brand Name Lutron
Insulation Material Plastic
Light Source Magnetic Low Voltage
TC Connection Wire Leads
Actuator Paddle Switch
Enclosure Material Plastic
Number of Poles 1 Pole
Number of Switches 1
Enclosure Plastic
Sub Brand Diva
