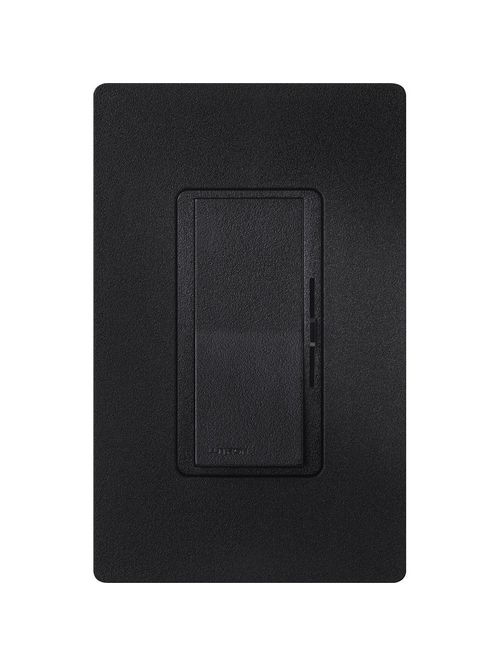

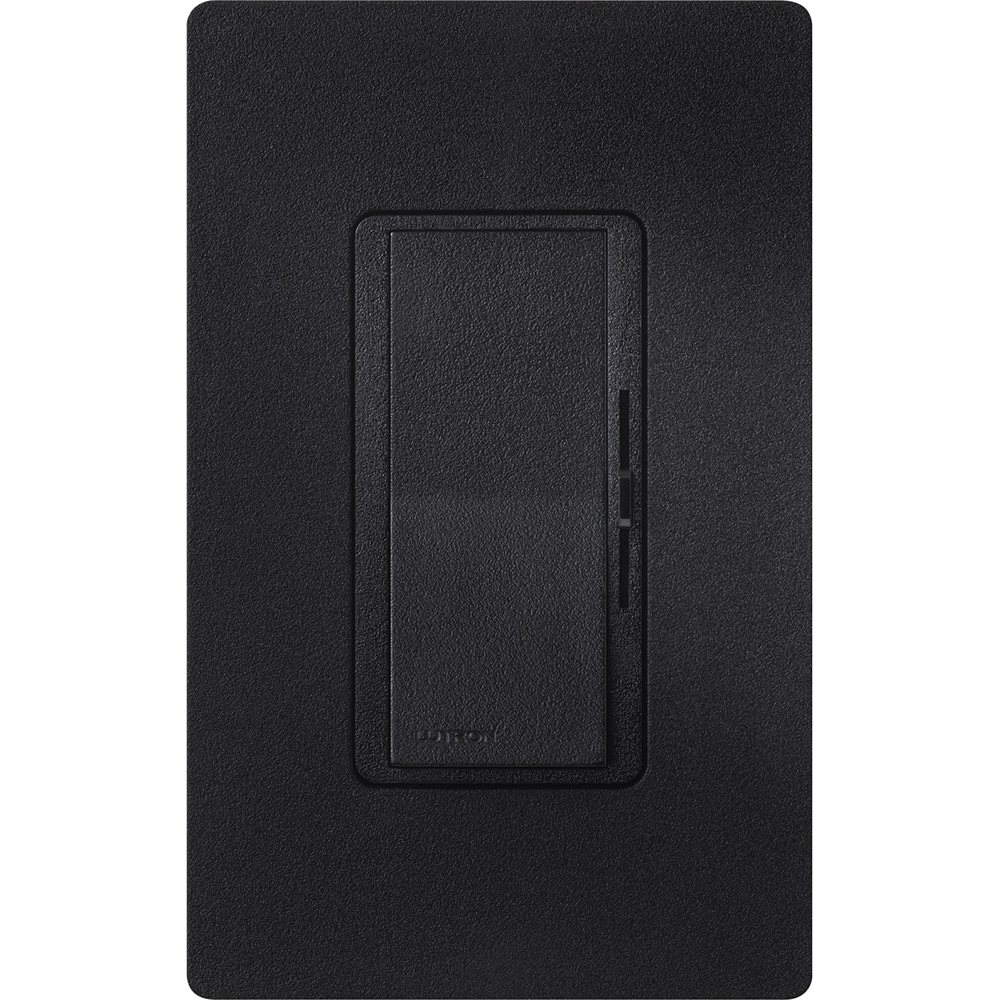

LUT DVSCSTV-MN DIVA 0-10 W/SWITCHIN
$108.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVSCSTV-MN
North Coast Part # 1163935

Features

  • Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Sub Brand: Diva
  • Wattage: 2216 W
  • Mounting: Wallbox
  • Standard: UL, CSA
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Amperage Rating: 8 A
  • Connection: Wire Leads
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Voltage Rating: 120 to 277 VAC
  • Type: Dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.32 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Environmental Conditions: Indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: MX

Overview

UPC 78427609971
GTiN 00784276099714
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Operating Temperature 0 To 40 C
Voltage 120-277 Volt
Type Dimmer, 3-way/single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Frequency 60 Hz
Connection Type Wire Leads
Wattage 2216 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Paddle Switch
Amperage 8 Amp
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
