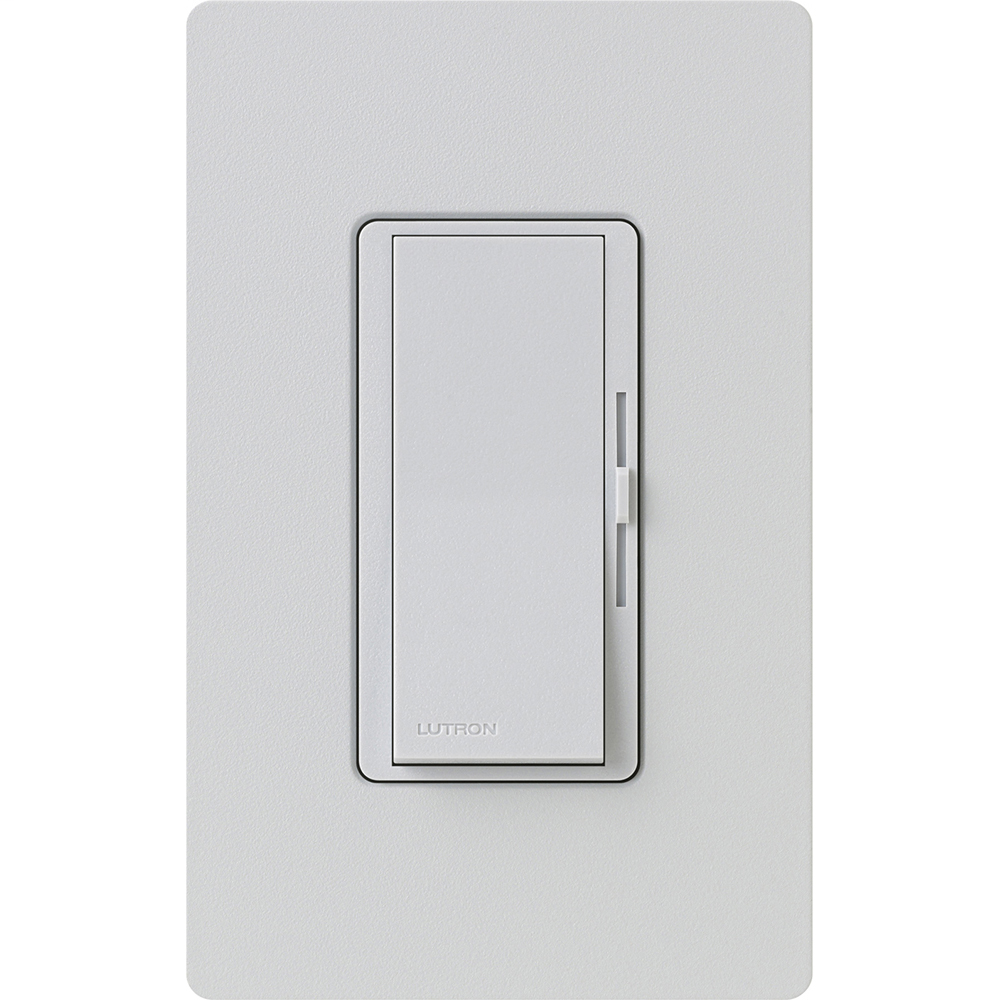

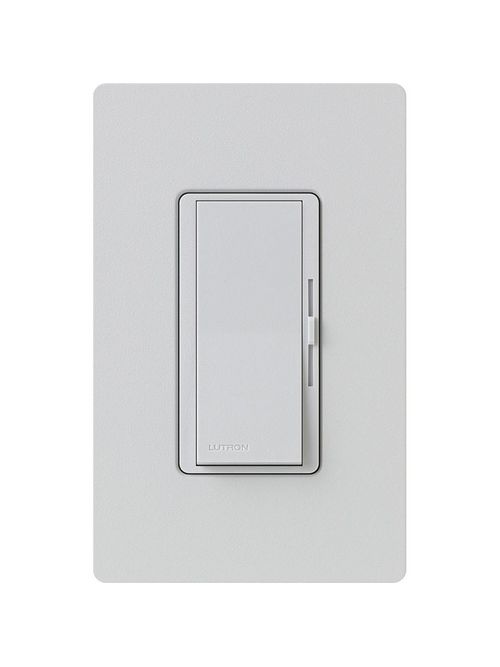

LUT DVSCTV-PD DIVA 0-10V CLASS 2 PA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$117.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVSCTV-PD
North Coast Part # 1826815

Features

  • Controls 0-10 V LED or fluorescent fixture loads, 30 mA max control current
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Power pack required.

Specifications

  • Sub Brand: Diva
  • Mounting: Wallbox
  • Standard: UL, CSA
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Connection: Wire Leads
  • Voltage Rating: 24 VAC
  • Actuator: Paddle switch
  • Material: Plastic/Metal
  • Type: Dimmer, single-pole
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Environmental Conditions: Indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: US

Categories

Overview

UPC 02755766361
Item Long Description Diva Dimmer - Satin Finish, Fluorescent or LED Dimming with 0-10V Ballasts and Drivers, Single-pole, 120V/30mA/16A in palladium
GTiN 00027557663618
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Operating Temperature 0 To 40 C
Voltage 24 Volt
Type Dimmer,Single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Frequency 50 Hz
Connection Type Wire Leads
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Paddle Switch
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
Standard CSA,UL
Environmental Conditions Indoor Use Only
