Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # EC5T540JUNV1
North Coast Part # 1831000


  • Maximize the benefits of a lighting management system
  • Offers continuous, flicker-free 100 % to 10 % dimming; ideal for use where saving energy, increasing flexibility, and maximizing productivity are the goals of the lighting design
  • Integral sensor connection provides power for and responds to one occupancy sensor, one photo sensor, and one personal control input (infrared receiver or wallstation)
  • Communicates status and sensor inputs over the EcoSystem digital link
  • Programmed rapid start design ensures full rated lamp life while dimming and cycling
  • Lamps turn on to any dimmed level without flashing to full brightness
  • Low harmonic distortion throughout the entire dimming range
  • Frequency of operation ensures that ballast does not interfere with infrared devices
  • End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life
  • Ultra-quiet operation
  • Non-volatile memory restores all ballast settings after power failure
  • Ballast maintain consistent light output for linear lamp lengths
  • Protected from miswires of any input to power to control lead, or from lamp leads to each other and/or ground
  • 100 % performance tested at factory
  • Custom ballast factors available
  • Design tool and specifications can be found at


  • Color: White
  • Type: Ballast
  • Wattage: 40 W
  • Ballast Factor: 1
  • Mounting: Fixture
  • Brand Name: Lutron
  • Dimmable: Dimmable
  • Number Of Lamps: 1
  • Height: 1 in (25 mm)
  • Sub Brand: EcoSystem
  • Length: 18 in (457 mm)
  • Width: 1.18 in (30 mm)
  • Frequency Rating: 50/60 Hz
  • Thermal Protection: Class P
  • Start Type: Programmed rapid
  • Application: Lighting Control
  • Voltage Rating: 120/240/277 V
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 1.075 L
  • Length Imperial: 17.5 IN
  • Width Imperial: 1.2 IN
  • Height Imperial: 1 IN
  • Power Factor: Greater than 0.95
  • Lamp Type: T5 Twin-tube fluorescent
  • Total Harmonic Distortion: Less than 10%
  • Amperage Rating: 0.36@120V/0.18@240V/0.16@277V
  • Minimum Starting Temperature: 10 degrees Celsius
  • Standard: UL, CSA, S Mark certified, Class P thermal protected, ANSI, FCC
  • Country of Origin: US


UPC 02755758075

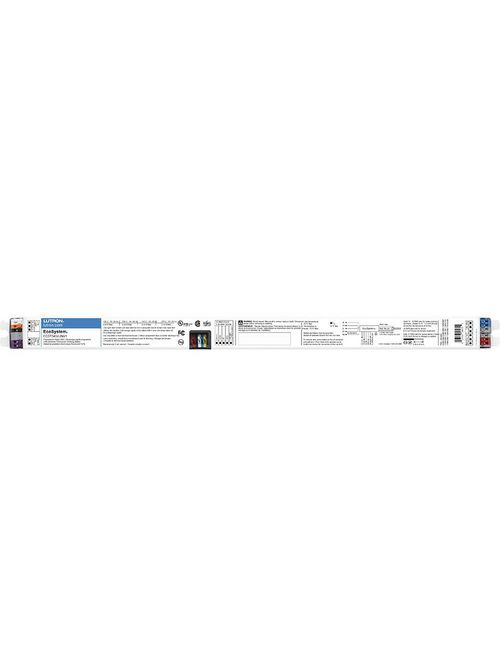

Item Long Description EcoSystem 10 percent 3-Wire and EcoSystem Digital Link Controlled T5 Twin Tube 1 lamp, ballast factor of 1.00, J-can 40W/120/277V
GTiN 00027557580755
Length 18 in
Width 1.18 in
Color White
Voltage 120 Volt
Applications Lighting
Mounting Type Fixture
Height 1 in
Country of Origin USA
Frequency 50 Hz
Wattage 40 Watt
Family Brand Name Lutron
Lamp Type Fluorescent,T5,Twin-tube
Number of Lamps 1
Dimmable? Yes
Amperage 0.16 Amp
Min Temperature 10 C
Thermal Protection Class P
Type Ballast
Standard ANSI,CSA,Class P Thermal Protected,FCC,S Mark Certified,UL
Ballast Factor 1
