Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing

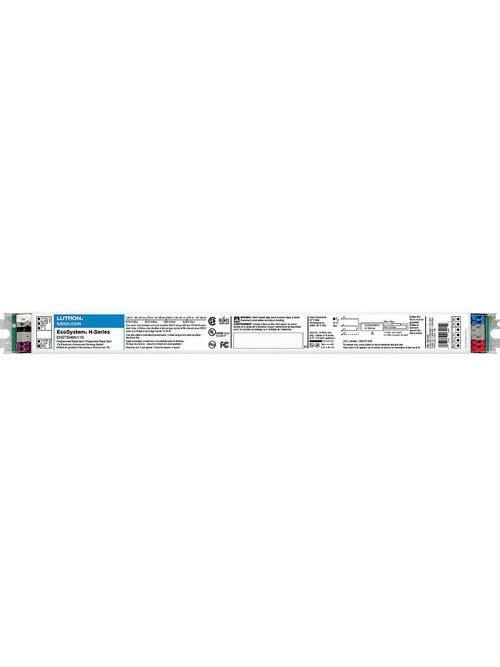

Manufacturer Lutron
Mfg Catalog # EHDT554MU110
North Coast Part # 753032


  • Digitally addressable ballasts that provide a low-cost, flexible solution for any space in any application
  • Industry leading, continuous, flicker-free dimming from 100 to 1 % to meet the needs of the most demanding applications
  • Individual control with the EcoSystem Digital Link eliminates the need to rewire, reduces design time, and provides a scalable solution from a small area to an entire building
  • Compatible with Energi Savr Node with EcoSystem and Grafik Eye QS control units, PowPak dimming module with EcoSystem units, and Quantum software, allowing for integration into an existing or planned EcoSystem lighting control solution
  • Programmed rapid start design preheats lamp cathodes before applying full arc voltage to ensure full-rated lamp life while dimming and cycling
  • 100 % performance tested and burned in at factory
  • Lamps turn on to any dimmed level without going to full brightness
  • Low harmonic distortion throughout the entire dimming range maintains power quality
  • Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz
  • Maintains consistent light output for different lamp lengths, ensuring fixture-to-fixture uniformity
  • Ultra-quiet operation
  • Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground
  • End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life
  • Non-volatile memory restores all ballast settings after power failure
  • 100 % compatible with all EcoSystem digital controls
  • Custom ballast factors available for UL or CSA listed products
  • Design tool and specifications can be found at


  • Color: White
  • Type: Ballast
  • Wattage: 54 W
  • Ballast Factor: 1
  • Mounting: Fixture
  • Brand Name: Lutron
  • Number Of Lamps: 1
  • Height: 1 in (25 mm)
  • Width: 1.18 in (30 mm)
  • Length: 14.13 in (359 mm)
  • Frequency Rating: 50/60 Hz
  • Thermal Protection: Class P
  • Start Type: Programmed rapid
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.755 L
  • Length Imperial: 14 IN
  • Width Imperial: 1.2 IN
  • Height Imperial: 1 IN
  • Application: Lighting Control
  • Sub Brand: EcoSystem H-Series
  • Voltage Rating: 120/240/277 V
  • Power Factor: Greater than 0.95
  • Lamp Type: T5HO Linear fluorescent
  • Total Harmonic Distortion: Less than 10%
  • Amperage Rating: 0.54@120 V/0.26@240V/0.23@277V
  • Minimum Starting Temperature: 10 degrees Celsius
  • Standard: UL, CSA, Class P thermal protected, ANSI, FCC
  • Country of Origin: MX


GTiN 00027557964012
Length 14.13 Inch
Width 1.18 in
Color White
Voltage 120 Volt
Type Ballast
Applications Lighting
Mounting Type Fixture
Height 1 Inch
Country of Origin Mexico
Frequency 50 Hz
Wattage 54 Watt
Family Brand Name Lutron
Lamp Type Fluorescent,Linear,T5HO
Number of Lamps 1
Amperage 0.23 Amp
Min Temperature 10 C
Start Type Programmed rapid
Minimum Starting Temp 10 degrees Celsius
Power Factor Greater than 0.95
Ballast Factor 1
Thermal Protection Class P
Total Harmonic Distortion Less than 10%
Sub Brand EcoSystem H-Series
Product UPC 02755796401
Standard ANSI,CSA,Class P Thermal Protected,FCC,UL
