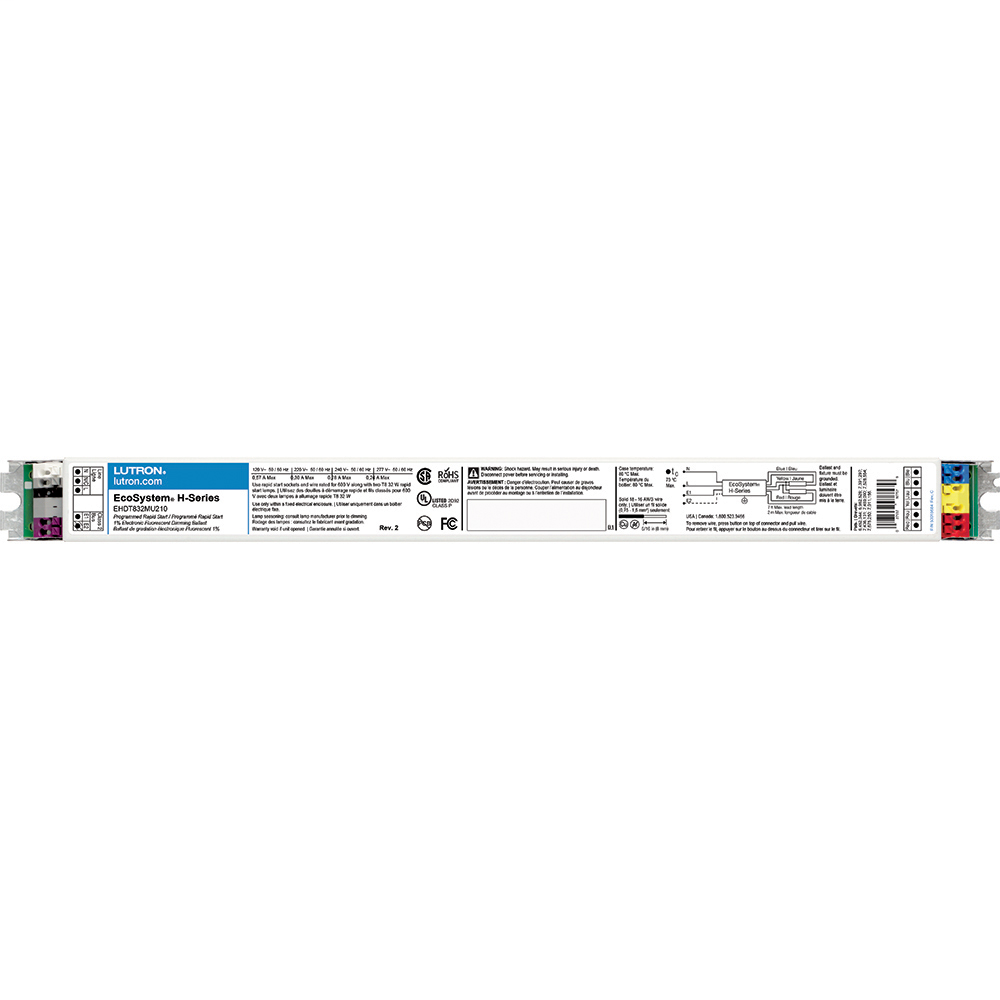

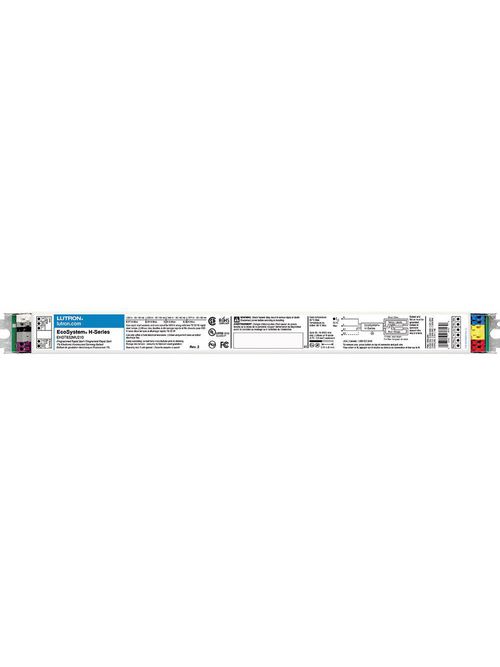

Lutron Electronics EHDT832MU210 32 W 277 Volt 0.47 Amp T8 Linear and U-Bent Fluorescent Dimming Ballast
$108.48/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # EHDT832MU210
North Coast Part # 753031

Features

  • Digitally addressable ballasts that provide a low-cost, flexible solution for any space in any application
  • Industry leading, continuous, flicker-free dimming from 100 to 1 % or less to meet the needs of the most demanding applications
  • Individual control with the EcoSystem Digital Link eliminates the need to rewire, reduces design time, and provides a scalable solution from a small area to an entire building
  • Compatible with Energi Savr Node with EcoSystem and Grafik Eye QS control units, PowPak dimming module with EcoSystem units, and Quantum software, allowing for integration into an existing or planned EcoSystem lighting control solution
  • Programmed rapid start design preheats lamp cathodes before applying full arc voltage to ensure full-rated lamp life while dimming and cycling
  • 100 % performance tested and burned in at factory
  • Lamps turn on to any dimmed level without going to full brightness
  • Low harmonic distortion throughout the entire dimming range maintains power quality
  • Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz
  • Maintains consistent light output for different lamp lengths, ensuring fixture-to-fixture uniformity
  • Ultra-quiet operation
  • Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground
  • End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life
  • Non-volatile memory restores all ballast settings after power failure
  • 100 % compatible with all EcoSystem digital controls
  • Custom ballast factors available for UL or CSA listed products
  • Design tool and specifications can be found at www.lutron.com/ballasttool.

Specifications

  • Color: White
  • Type: Ballast
  • Wattage: 32 W
  • Ballast Factor: 1
  • Mounting: Fixture
  • Brand Name: Lutron
  • Number Of Lamps: 2
  • Height: 1 in (25 mm)
  • Width: 1.18 in (30 mm)
  • Length: 14.13 in (359 mm)
  • Frequency Rating: 50/60 Hz
  • Thermal Protection: Class P
  • Start Type: Programmed rapid
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.755 L
  • Length Imperial: 14 IN
  • Width Imperial: 1.2 IN
  • Height Imperial: 1 IN
  • Application: Lighting Control
  • Sub Brand: EcoSystem H-Series
  • Voltage Rating: 120/240/277 V
  • Power Factor: Greater than 0.95
  • Lamp Type: T8/U-Bend fluorescent
  • Total Harmonic Distortion: Less than 10%
  • Amperage Rating: 0.57@120 V/0.28@240V/0.24@277V
  • Minimum Starting Temperature: 10 degrees Celsius
  • Standard: UL, CSA, Class P thermal protected, ANSI, FCC
  • Country of Origin: MX

Overview

UPC 02755797757
GTiN 00027557977579
Length 14.13 in
Width 1.18 in
Color White
Voltage 277 Volt
Type Ballast
Applications Lighting
Mounting Type Fixture
Height 1 in
Country of Origin Mexico
Standard UL,Class P Thermal Protected,ANSI,CSA,FCC
Frequency 60 Hz
Wattage 32 Watt
Family Brand Name Lutron
Lamp Type Fluorescent,U-Bend,T8
Number of Lamps 2
Amperage 0.28 Amp
Min Temperature 10 C
Start Type Programmed rapid
Minimum Starting Temp 10 degrees Celsius
Power Factor Greater than 0.95
Ballast Factor 1
Thermal Protection Class P
Total Harmonic Distortion Less than 10%
Sub Brand EcoSystem H-Series
