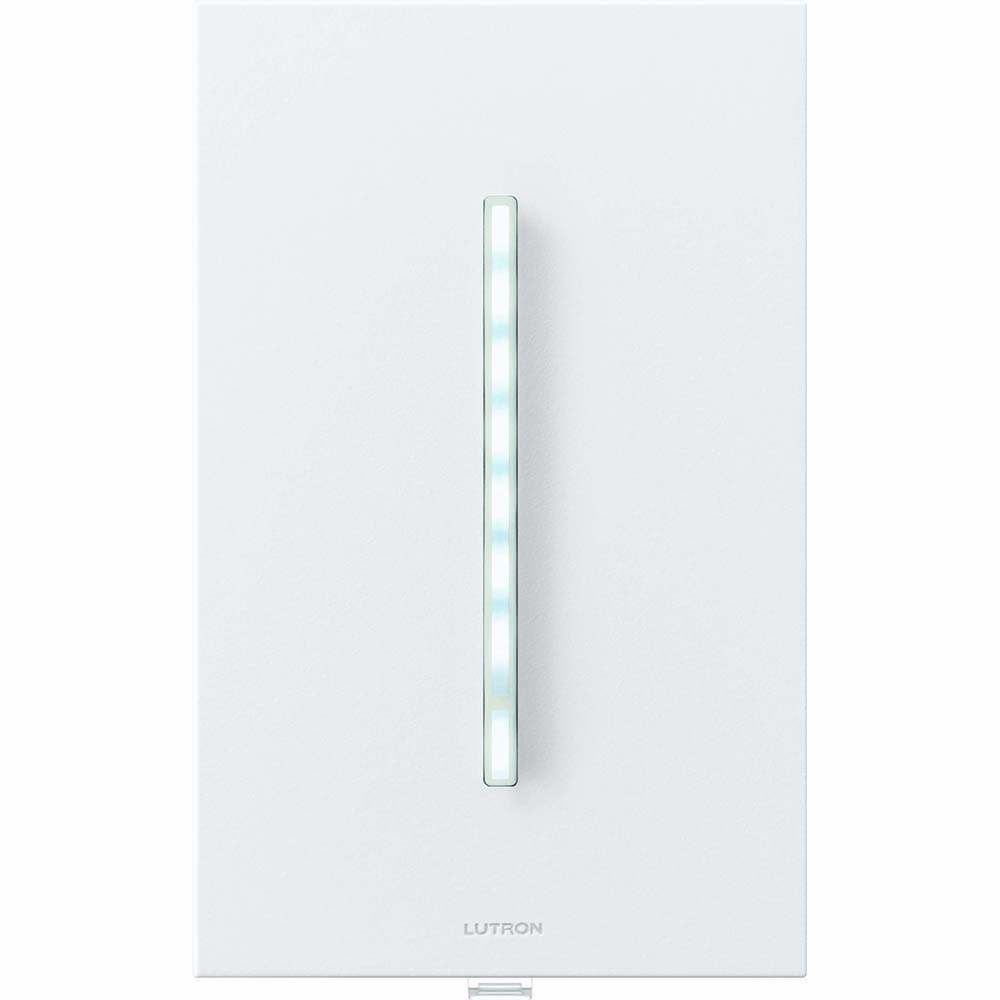

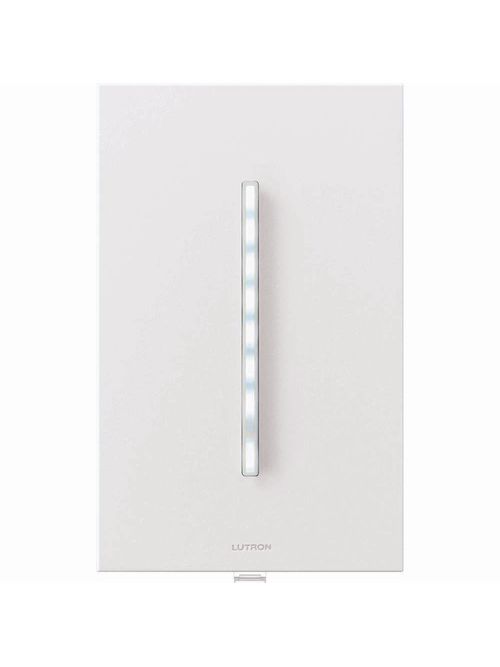

LUT GT-5ANSM-WH GRAFIK T 5A SWITCH
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$115.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # GT-5ANSM-WH
North Coast Part # 1271230

Features

  • Controls 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED, fluorescent, or HID loads, or 3 A fans (1/10 HP)
  • Neutral connection required
  • Touch LED light bar anywhere to toggle load on/off
  • Tap toggle button to turn lights off or turn on
  • Toggle button is white when on, orange when off.

Specifications

  • Color: White (WH)
  • Wattage: 600 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Actuator: Touch bar
  • Insulation: Plastic
  • Sub Brand: GRAFIK T
  • Contact Rating: 5/3 A
  • Voltage Rating: 120 V
  • Amperage Rating: 5/3 A
  • Connection: Wire Leads
  • Material: Plastic/Metal
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Standard: UL, CUL, NOM, FCC, IC, IFTEL
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 4.269 O
  • Length Imperial: 5.156 IN
  • Width Imperial: 5.25 IN
  • Height Imperial: 3.688 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Touch electronic switch, multi-location/single-pole
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: MX

Overview

UPC 78427610866
Item Long Description GRAFIK T Switch, 5A Incandescent /Halogen/Fluorescent/LED/MLV/ELV, 3A fan or 1/10 HP motor, 120V
GTiN 00784276108669
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color White
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Multi-location/single-pole,Touch Electronic Switch
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard CUL,FCC,IC,IFTEL,NOM,UL
Connection Type Wire Leads
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Touch Bar
Contact Configuration N-O
Amperage 5/3 Amp
Environmental Conditions 0 To 90% Humidity,Indoor Use Only,Non-condensing
Enclosure Material Plastic
Contact Rating 5/3 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand GRAFIK T
