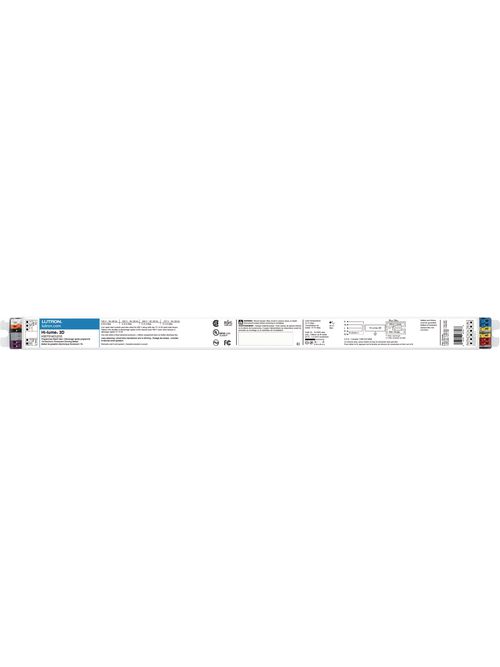

LUT H3DT514CU210 HI-LUME 3D BALLAST
$191.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # H3DT514CU210
North Coast Part # 817890

Features

  • Designed to meet the most demanding lighting requirements
  • By providing industry leading performance with a full-range of 100 % to 1 % continuous, flicker-free fluorescent dimming, Hi-lume 3D ballasts enable you to provide the ideal visual environment for any application
  • 100% compatible with all Lutron 3-wire fluorescent and EcoSystem digital controls for consistent fixture-to-fixture dimming performance
  • Compatible with Energi Savr Node with EcoSystem devices, GRAFIK Eye QS control units, PowPak dimming modules with EcoSystem connection, and Quantum software, allowing for integration into an existing or planned EcoSystem lighting control solution
  • Programmed rapid-start design preheats lamp cathodes before applying full arc voltage to ensure full-rated lamp life while dimming and cycling
  • Lamps turn on to any dimmed level without going to full brightness
  • Low harmonic distortions throughout the entire dimming range maintains power quality
  • Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz
  • Inrush current limiting circuitry eliminates circuit breaker tripping, switch arcing, and relay failure
  • Ballasts maintain consistent light output for different lamp lengths, ensuring fixture-to-fixture uniformity
  • Ultra-quiet operation
  • Ballast protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground
  • 100 % performance-tested and burned-in at factory
  • Non-volatile memory restores all ballast settings after power failure
  • Custom ballast factors available for UL or CSA-listed products
  • Design tool and specifications can be found at www.lutron.com/ballasttool.

Specifications

  • Color: White
  • Type: Ballast
  • Wattage: 14 W
  • Ballast Factor: 1
  • Mounting: Fixture
  • Brand Name: Lutron
  • Number Of Lamps: 2
  • Height: 1 in (25 mm)
  • Sub Brand: HI-Lume 3D
  • Length: 18 in (457 mm)
  • Width: 1.18 in (30 mm)
  • Frequency Rating: 50/60 Hz
  • Thermal Protection: Class P
  • Start Type: Programmed rapid
  • Application: Lighting Control
  • Voltage Rating: 120/240/277 V
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 1.075 L
  • Length Imperial: 17.5 IN
  • Width Imperial: 1.2 IN
  • Height Imperial: 1 IN
  • Lamp Type: T5 Linear fluorescent
  • Power Factor: Greater than or equal to 0.95
  • Amperage Rating: 0.30@120 V/0.15@240V/0.13@277V
  • Minimum Starting Temperature: 10 degrees Celsius
  • Total Harmonic Distortion: Less than or equal to 10 %
  • Standard: UL, CSA, Class P thermal protected, ANSI, FCC
  • Country of Origin: MX

Overview

UPC 02755797716
GTiN 00027557977166
Length 18 in
Width 1.18 in
Color White
Voltage 277 Volt
Type Ballast
Applications Lighting
Mounting Type Fixture
Height 1 in
Country of Origin Mexico
Standard CSA,FCC,Class P Thermal Protected,UL,ANSI
Frequency 60 Hz
Wattage 14 Watt
Family Brand Name Lutron
Lamp Type T5,Linear,Fluorescent
Number of Lamps 2
Amperage 0.3 Amp
Min Temperature 10 C
Start Type Programmed rapid
Minimum Starting Temp 10 degrees Celsius
Power Factor Greater than or equal to 0.95
Ballast Factor 1
Thermal Protection Class P
Total Harmonic Distortion Less than or equal to 10 %
Sub Brand HI-Lume 3D
