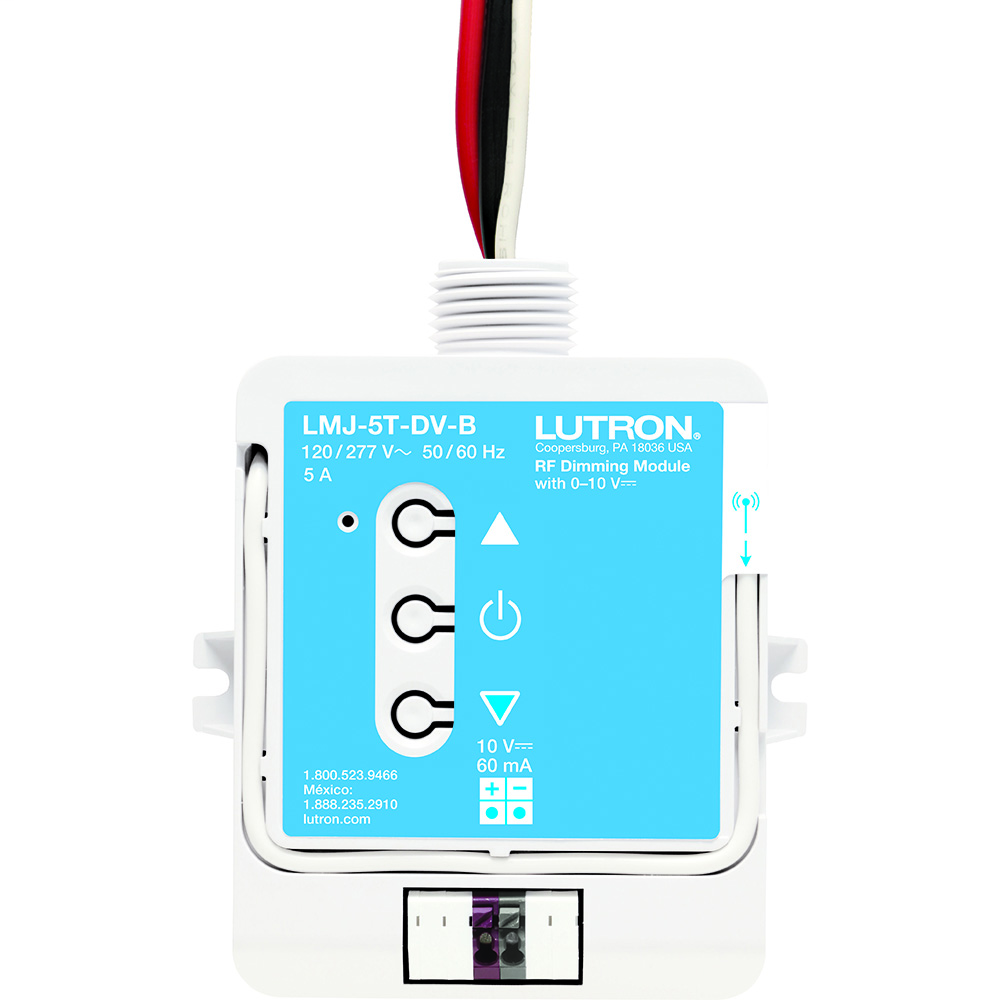

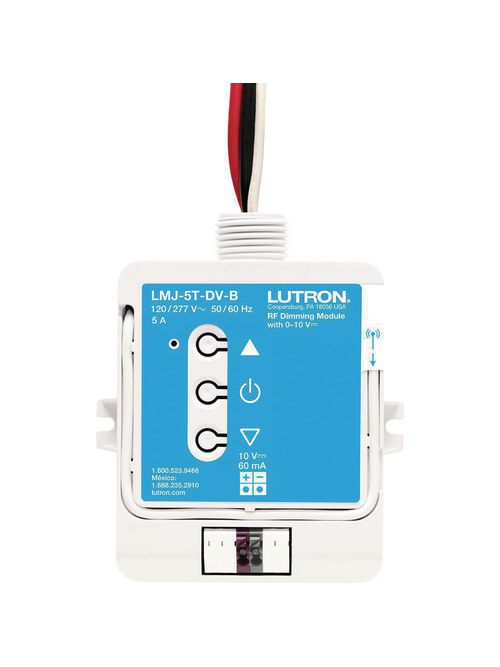

LUT LMJ-5T-DV-B POWPAK 0-10V 434 RE
$245.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # LMJ-5T-DV-B
North Coast Part # 1169156

Features

  • Radio frequency (RF) control that operates 0-10 V controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and Homeworks QS systems
  • 0-10 VDC control link automatically sources or sinks up to 60 mA to third party fixtures
  • Switches line voltage up to 5 A
  • Configurable high- and low-end trim
  • Utilizes Lutron Clear Connect RF Technology
  • Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening
  • Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22 (C)(3).

Specifications

  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Amperage Rating: 5 A
  • Mounting: Junction Box
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Voltage Rating: 120 to 277 VAC
  • Standard: UL, FCC, CSA, IC, NOM
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.34 L
  • Length Imperial: 3.375 IN
  • Width Imperial: 2.219 IN
  • Height Imperial: 4.5 IN
  • Size: 3.94 in (100 mm) x 2.82 in (71.6 mm)
  • Type: Dimming module for 0-10 VDC control, RF
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: MX

Overview

UPC 78427607973
GTiN 00784276079730
Size 3.94 in (100 mm) x 2.82 in (71.6 mm)
Operating Temperature 0 To 40 C
Voltage 120-277 Volt
Type Dimming module for 0-10 VDC control, RF
Material Plastic, Metal
Applications For Lighting Control, Indoor Use
Mounting Type Junction Box
Country of Origin Mexico
Standard CSA,NOM,IC,UL,FCC
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Insulation Material Plastic
Amperage 5 Amp
Blade Dimensions 3.94 in x 2.82 in
Environmental Conditions 0 to 90 PCT
Enclosure Material Plastic
Number of Poles 1 Pole
Load Rating 0 - 10 V
Enclosure Plastic
Used With 0 - 10 V Controlled Fluorescent Ballasts or LED Drivers
Sub Brand PowPak
