Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # LOS-WDT-R-WH
North Coast Part # 1829788


  • Can be mounted to a wall or ceiling for use in spaces with pendant fixtures, ceiling fans, or high ceilings (higher than 12 ft (3.7 m)
  • The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product
  • Designed to meet the challenges found in a wide variety of spaces, the sensor works well in spaces with overhead fans and space heaters
  • Ideal for use in work areas, storage facilities, storerooms, indoor garages, and rooms with pendant fixtures
  • Intelligent, continually adapting sensor
  • Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity
  • The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors
  • Suited for complex environments that are difficult to control with single-technology sensors
  • Flexible base mounting on wall or ceiling
  • Aim and lock: base mount permits fast alignment
  • Non-volatile memory: settings saved in protected memory are not lost during power outages
  • 1600 ft2 (148 m2) coverage when used where the ceiling height is between 8 to 12 ft (2.4 to 3.7 m)
  • Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.


  • Mounting: Ceiling
  • Standard: UL, cUL
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Sub Brand: LOS-WDT series
  • Supply Voltage: 20 to 24 VDC
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.61 L
  • Length Imperial: 5.7 IN
  • Width Imperial: 7 IN
  • Height Imperial: 2.9 IN
  • Operating Temperature: 0 to 40 degrees Celsius

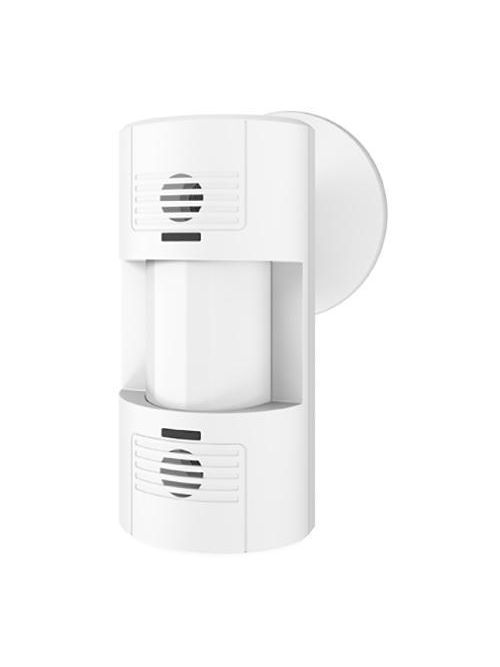

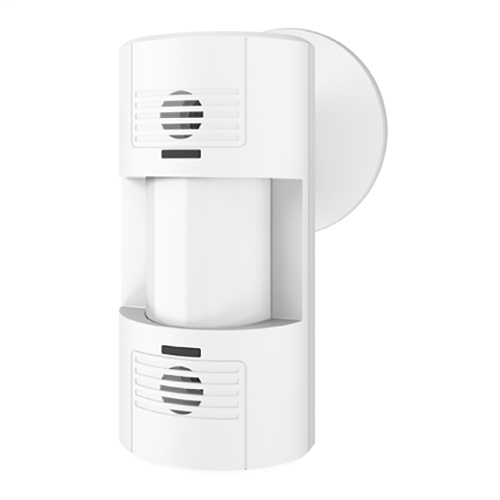

  • Type: Dual Technology wall-mount occupancy sensor
  • Sensing Range: 1600 ft2 (148 m2), 110 degree field of view
  • Environmental Conditions: Relative humidity less than 95 percent, non-condensing. For indoor use only
  • Country of Origin: CN


UPC 02755721242
Item Long Description LOS Series Wall-mount Occupancy Sensor, Dual Technology self-adaptive with second output, White finish only, 20-24VDC
GTiN 00027557212427
Operating Temperature 0 To 40 C
Type Dual Technology, Presence Detector
Applications For Lighting Control
Mounting Type Wall
Country of Origin China
Standard CUL,UL
Family Brand Name Lutron
Environmental Conditions For Indoor Use Only,Non-condensing,Relative Humidity Less Than 95 Percent
Enclosure Material Plastic
Sensing Range 1600 ft2 (148 m2), 110 degree field of view
Enclosure Plastic
Sub Brand LOS-WDT series
Color White
Material Plastic
Temperature Rating 0 - 40 C
Response Time 30 min
Blade Dimensions 92 mm W x 99 mm D x 133 mm H
