Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # LRF2-VCR2B-P-WH
North Coast Part # 761425

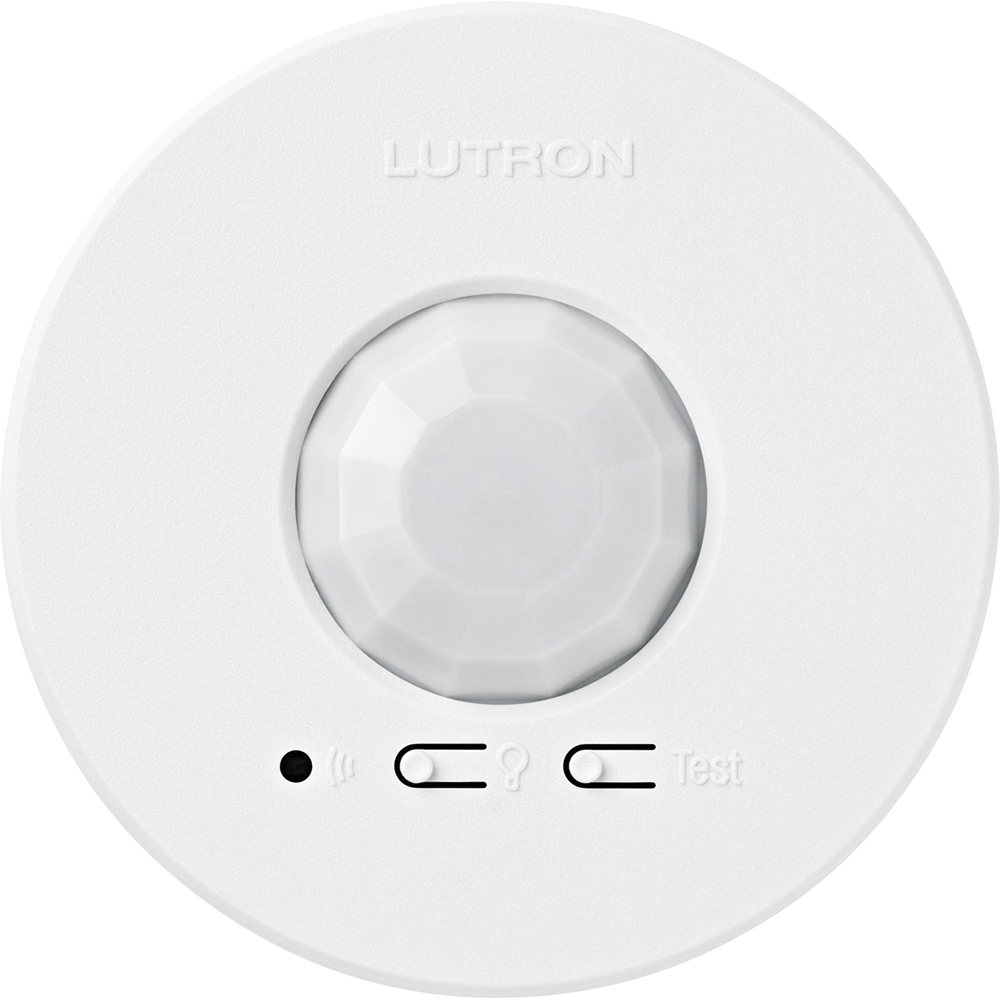

  • Battery-powered passive infrared (PIR) sensor that automatically controls lights via RF communication to compatible dimming and switching devices
  • This sensor detects the heat from people moving within an area to determine when the space is occupied
  • The sensor then wirelessly transmits the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically
  • Combines both convenience and exceptional energy savings potential along with ease of installation
  • Meets California (U.S.A.) Title 24 requirements
  • Uses Clear Connect technology
  • PIR motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 360 degree coverage from 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), depending on mounting height
  • Simple and intuitive adjustments available for timeout, auto-on, and activity settings
  • Supports advanced occupancy features such as dependent occupancy groups and customizable occupied/unoccupied presets in some systems
  • Multiple sensors can be added for extended coverage
  • Lens illuminates during test mode to verify ideal locations
  • Multiple ceiling-mount methods available for different ceiling materials
  • Front accessible test buttons make programming easy
  • 10-year battery life design.


  • Mounting: Ceiling
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Supply Voltage: 3 VDC
  • Sub Brand: Radio Powr Savr
  • Application: Lighting Control
  • Type: Wireless vacancy sensor
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 1.64 IN
  • Width Imperial: 3.65 IN
  • Height Imperial: 4 IN
  • Environmental Conditions: For indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Standard: cUL, FCC, IC, CA Energy Commission Title 24, COFETEL, ANATEL, SUTEL
  • Sensing Range: 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), 360 degree field of view
  • Country of Origin: MX



UPC 02755783198
GTiN 00027557831987
Color White
Operating Temperature 0 To 40 C
Type Presence Detector
Applications For Lighting Control
Mounting Type Ceiling
Country of Origin Mexico
Standard ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Family Brand Name Lutron
Environmental Conditions For Indoor Use Only
Enclosure Material Plastic
Sensing Range 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), 360 degree field of view
Enclosure Plastic
Sub Brand Radio Powr Savr
Material Plastic
Temperature Rating 0 - 40 C
Response Time 30 min
Blade Dimensions 28.7 mm D
