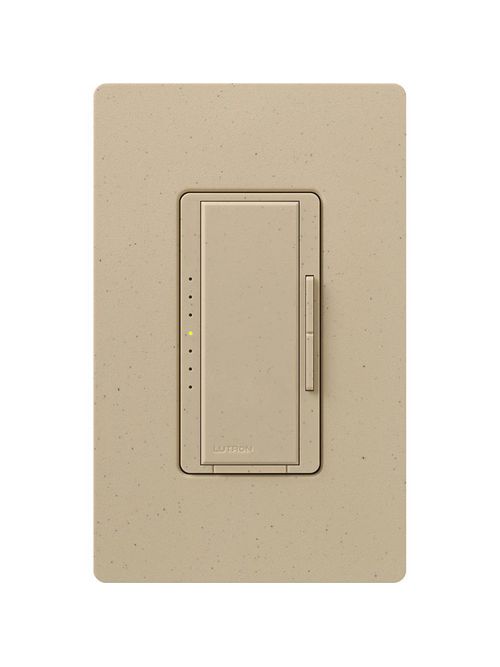

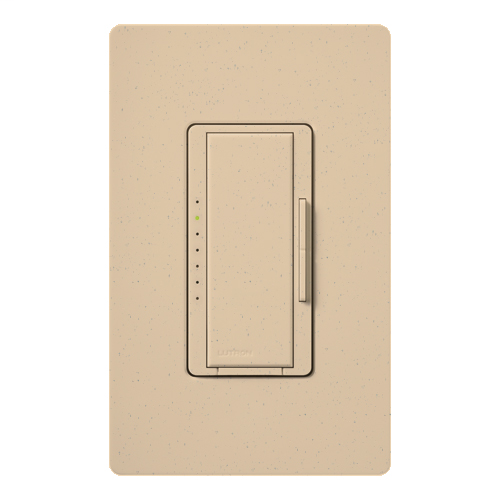

LUT MA-FQ4FM-DS MA FAN MLOC W/1 CM
$87.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MA-FQ4FM-DS
North Coast Part # 333752

Details

  • Use up to 2 companion controls with one Maestro digital fan control
  • Controls up to four fans
  • Use the rocker to adjust fan speed
  • Multi-location dimming compatible with 3-way wiring for easy installation and retrofit
  • One canopy module included with main control; order one canopy module for each additional fan controlled
  • Matching dimmers, switches, and accessories available
  • Coordinating Claro wallplates available separately
  • Available in 27 colors
  • 7 quiet fan speeds; the LEDs correspond to the fan speed
  • Remote control versions available

Specifications

  • Main or Companion Control: Main Control
  • Color: Desert Stone

Additional Product Information

  • In multi-location applications, only one dimmer can be used.
  • Set multi-speed fans to their highest setting before installing controls.
  • Do not use incandescent, halogen or compact fluorescent lamps or electronic low voltage lighting.
  • Can be used with up to four 1A ceiling fans. Do not use with exhaust fans.

Overview

UPC 02755723557
GTiN 00027557235570
Size 4.69 in (119 mm) x 2.94 (75 mm)
Color Desert Stone
Voltage 120 Volt
Type With Canopy Module,Digital Fan Control,Multi-location/single-pole
Applications Fan Control
Mounting Type Wallbox
Standard UL CSA NOM
Connection Type Screw Terminals
Wattage 480 Watt
Family Brand Name Lutron
Control Type Main Control
TC Connection Screw terminal
Actuator Tapswitch
Contact Configuration N-O
Amperage 4 Amp
Enclosure Material Plastic
Contact Rating 1 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Maestro
