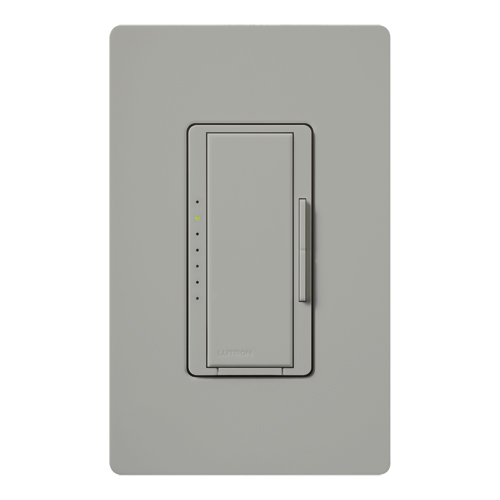

LUT MA-FQ4FM-GR MA FAN MLOC W/1 CM
$77.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MA-FQ4FM-GR
North Coast Part # 1343465

Specifications

  • Color: Gray
  • Main or Companion Control: Main Control

Details

  • Available in 27 colors
  • Controls up to four fans
  • Use the rocker to adjust fan speed
  • Use up to 2 companion controls with one Maestro digital fan control
  • Remote control versions available
  • 7 quiet fan speeds; the LEDs correspond to the fan speed
  • Matching dimmers, switches, and accessories available
  • Multi-location dimming compatible with 3-way wiring for easy installation and retrofit
  • One canopy module included with main control; order one canopy module for each additional fan controlled
  • Coordinating Claro wallplates available separately

Gloss Finish Color

Gray (GR)

Additional Product Information

  • Do not use incandescent, halogen or compact fluorescent lamps or electronic low voltage lighting.
  • Can be used with up to four 1A ceiling fans. Do not use with exhaust fans.
  • In multi-location applications, only one dimmer can be used.
  • Set multi-speed fans to their highest setting before installing controls.

Categories

Overview

UPC 02755723545
GTiN 00027557235457
Size 4.69 in (119 mm) x 2.94 (75 mm)
Color Gray
Voltage 120 Volt
Type Digital Fan Control,Multi-location/single-pole,With Canopy Module
Applications Fan Control
Mounting Type Wallbox
Standard UL CSA NOM
Connection Type Screw Terminals
Wattage 480 Watt
Family Brand Name Lutron
Control Type Main Control
TC Connection Screw terminal
Actuator Tapswitch
Contact Configuration N-O
Amperage 4 Amp
Enclosure Material Plastic
Contact Rating 1 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Maestro
