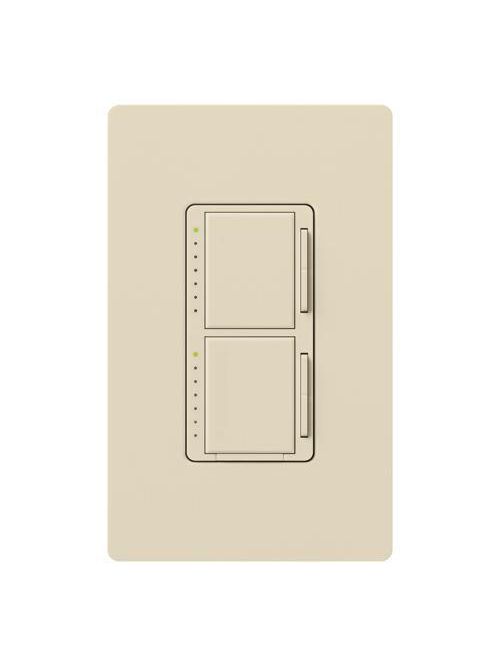

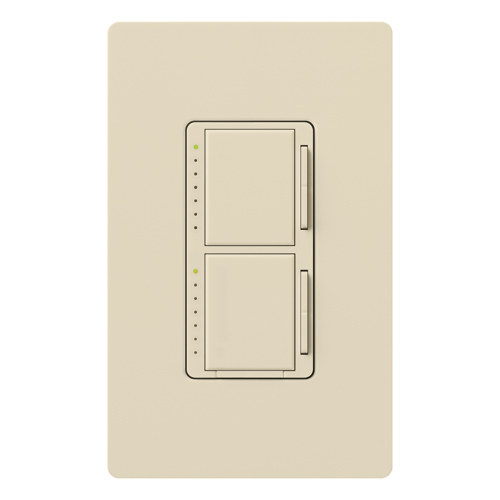

Lutron MA-L3L3-LA 300 W 120 Volt Light Almond 1-Pole Incandescent/Halogen Digital Fade Dimmer
Product image thumbnail 0
Product image thumbnail 1
$85.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MA-L3L3-LA
North Coast Part # 350637

Features

  • Controls 300 W incandescent or halogen loads
  • Dimmers (top/bottom)
  • Replacement for stacked switches
  • Tap on to preset light level; tap off
  • Tap twice for full on
  • Touch rocker to adjust light level
  • Single location only
  • Dimmer advanced programming features available.

Specifications

  • Wattage: 300 W
  • Standard: UL cUL
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Maestro
  • Actuator: Tapswitch
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Material: Plastic/Metal
  • Connection: Screw terminals
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.28 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 3.375 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Dual digital-face dimmer (two loads), single-pole
  • Environmental Conditions: 0 to 90% humidity, non-condensing
  • Country of Origin: MX

Overview

UPC 02755741140
GTiN 00027557411400
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Light Almond
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Dual Digital-face Dimmer (two Loads),Single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard UL CUL
Frequency 50 Hz
Connection Type Screw-Type Terminals
Wattage 300 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Screw terminals
Actuator Tapswitch
Max Wattage 300 W
Environmental Conditions 0 To 90% Humidity,Non-condensing
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Incandescents,Halogens
Sub Brand Maestro
