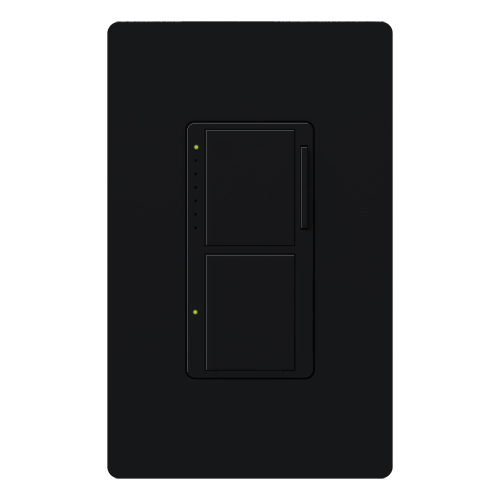

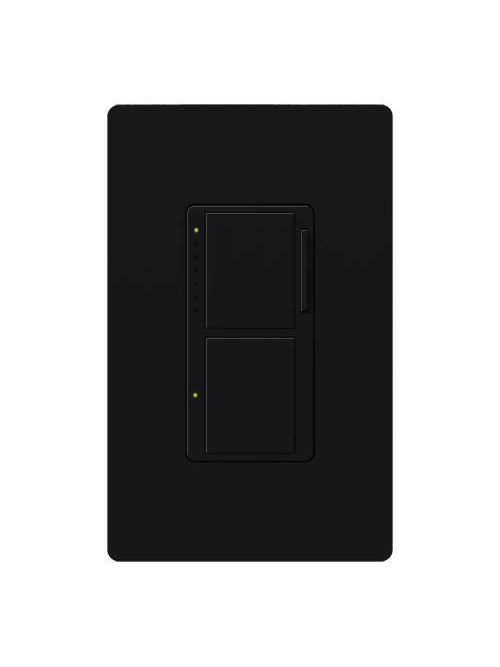

LUT MA-L3S25-BL MA DIM/SWITCH 300/2
Product image thumbnail 0
Product image thumbnail 1
$82.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MA-L3S25-BL
North Coast Part # 492778

Features

  • Controls 300 W incandescent or halogen loads and rated for 2.5 A incandescent/halogen, magnetic low-voltage, electronic low/voltage, LED/CFL, or fluorescent loads or general purpose fans
  • Dimmer (top) Replacement for stacked switches
  • Tap on to preset light level; tap off
  • Tap twice for full on
  • Touch rocker to adjust light level
  • Dimmer advanced programming features available
  • Switch (bottom) Tap switch on/off
  • Single location only.

Specifications

  • Wattage: 300 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Maestro
  • Actuator: Tap switch
  • Standard: UL cUL NOM
  • Contact Rating: 2.5 A
  • Voltage Rating: 120 V
  • Amperage Rating: 2.5 A
  • Connection: Screw terminal
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.27 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 3.375 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing
  • Type: Dual digital-fade dimmer/electronic switch (two loads), single-pole
  • Country of Origin: MX

Categories

Overview

UPC 02755728916
GTiN 00027557289160
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Black
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Dual Digital-fade Dimmer/electronic Switch (two Loads),Single-pole
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard UL CUL NOM
Connection Type Screw-Type Terminals
Wattage 300 Watt
Family Brand Name Lutron
TC Connection Screw terminal
Actuator Tapswitch
Contact Configuration N-O
Amperage 2.5 Amp
Max Wattage 300 W
Environmental Conditions 0 To 90% Humidity,Non-condensing
Enclosure Material Plastic
Contact Rating 2.5 A
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Halogens,Incandescents
Sub Brand Maestro
