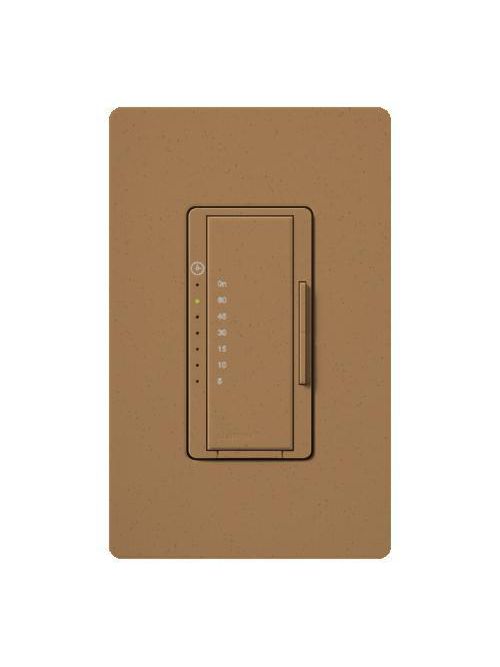

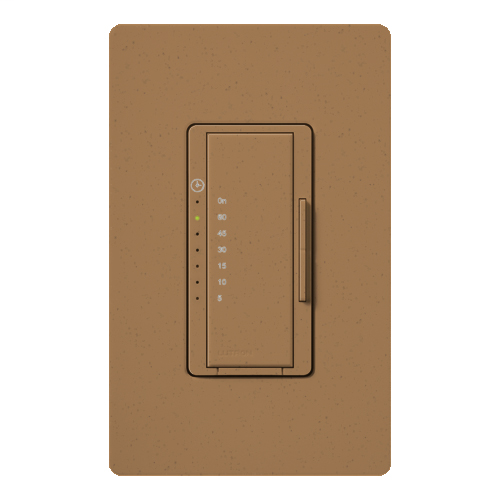

LUT MA-T51-TC MA TIMER 1H 3-5A TC
$64.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MA-T51-TC
North Coast Part # 818095

Features

  • Rated for 5 A incandescent/halogen or magnetic low-voltage loads, or 3 A general purpose fans
  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting
  • Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
  • Touch rocker to adjust countdown time
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.

Specifications

  • Wattage: 600 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Maestro
  • Contact Rating: 5 A
  • Insulation: Plastic
  • Amperage Rating: 5 A
  • Voltage Rating: 120 V
  • Timing Range: 5 - 60 min
  • Connection: Screw terminal
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Standard: UL, cUL, IEC, ANSI/IEEE
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.26 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Type: Countdown timer control switch, single-pole
  • Country of Origin: MX

Overview

UPC 02755729042
GTiN 00027557290425
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Voltage 120 Volt
Type Countdown timer control switch, single-pole
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Connection Type Screw-Type Terminals
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Screw terminal
Contact Configuration N-O
Amperage 5 Amp
Enclosure Material Plastic
Contact Rating 5 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Maestro
