Manufacturer Lutron
Mfg Catalog # MA-T530G-LA
North Coast Part # 664110


  • Rated for 5 A incandescent/halogen or magnetic low-voltage loads, or 3 A general purpose fans
  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting
  • Tap on to start timer
  • Touch rocker to adjust countdown time
  • Timer ranges from 1-30 minutes and always turns off; no full on option
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.


  • Wattage: 600 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Maestro
  • Contact Rating: 5 A
  • Insulation: Plastic
  • Amperage Rating: 5 A
  • Voltage Rating: 120 V
  • Timing Range: 1 - 30 min
  • Connection: Screw terminal
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.4 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Standard: UL, cUL, IEC, ANSI/IEEE
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Type: Countdown timer control switch with eco-timer
  • Country of Origin: MX


UPC 02755766323

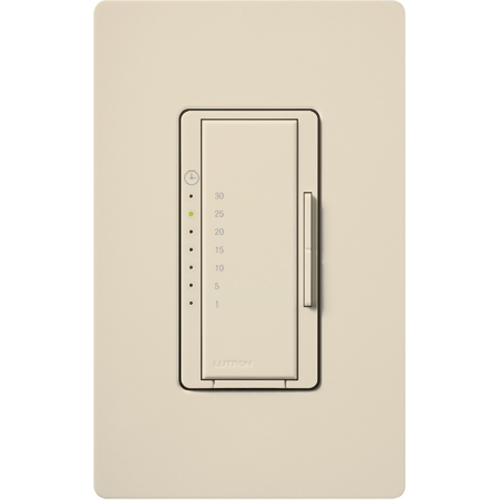

Item Long Description Maestro Countdown Timer, Eco-timer Control Switch, Single-pole, no neutral required, 120V/600W/VA (lights) or 3A (fans) in light almond
GTiN 00027557663236
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Light Almond
Voltage 120 Volt
Type Countdown Timer Control Switch With Eco-timer
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Connection Type Screw-Type Terminals
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Screw terminal
Contact Configuration N-O
Amperage 5 Amp
Enclosure Material Plastic
Contact Rating 5 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Maestro
