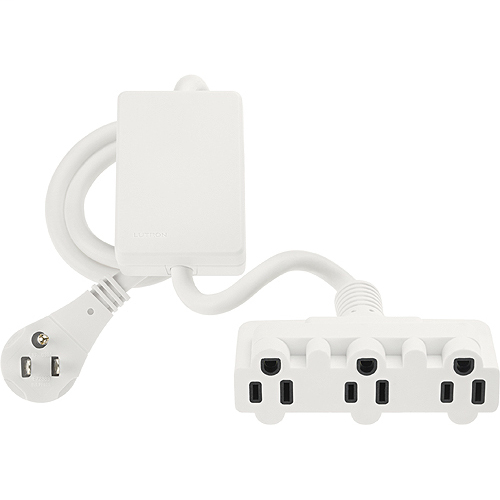

Lutron MRF2-15APS-3-WH 120 VAC 15 Amp 1/2 Hp 3-Outlet White Plug-In Appliance Module
$106.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MRF2-15APS-3-WH
North Coast Part # 753010

Features

  • Easy-to-install RF control for use with general purpose switching loads
  • Communication with the Maestro Wireless system is accomplished by using Clear Connect RF technology
  • The appliance module can be configured to work with Pico wireless controls and Radio Powr Savr sensors to turn off lighting and loads in standby mode such as printers, monitors, and televisions when the space is unoccupied
  • Softswitch, Lutron's patented technology prevents the relay contacts from arcing, extending the switch's average life
  • Over-temperature detection: The unit will turn off if it detects a mis-application due to an excessive ambient temperature or overload
  • Typical power consumption: 0.3 W (typical test conditions = load off)
  • Can be hidden discretely behind furniture.

Specifications

  • Color: White (WH)
  • Mounting: Plug
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Connection: Plug in
  • Insulation: Plastic
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Contact Configuration: N-O
  • Contact Rating: 15 A/.5 HP
  • Amperage Rating: 15 A/.5 HP
  • Sub Brand: Maestro Wireless
  • Size: 3.3 in (84 m) x 2.3 in (58 mm)
  • Standard: UL, FCC, cUL, IC, NOM, SCT
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 1 L
  • Length Imperial: 5.156 IN
  • Width Imperial: 5.25 IN
  • Height Imperial: 3.688 IN
  • Type: Plug-in appliance module, 3 receptacles
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: MX

Overview

UPC 02755779457
GTiN 00027557794572
Size 3.3 in (84 m) x 2.3 in (58 mm)
Color White
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 1-Pole, NO
Material Metal/Plastic
Mounting Type Plug
Country of Origin Mexico
Standard CUL,FCC,IC,NOM,SCT,UL
Connection Type Plug In
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Plug in
Contact Configuration N-O
Amperage 15 Amp
Environmental Conditions 0 To 90% Humidity,Indoor Use Only,Non-condensing
Enclosure Material Plastic
Contact Rating .5 hp
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Lighting Loads,Appliances,General Purpose Fans
Sub Brand Maestro
Temperature Rating 0 - 40 C
Power Rating 372.85 W
Blade Dimensions 3.3 x 2.3 in
