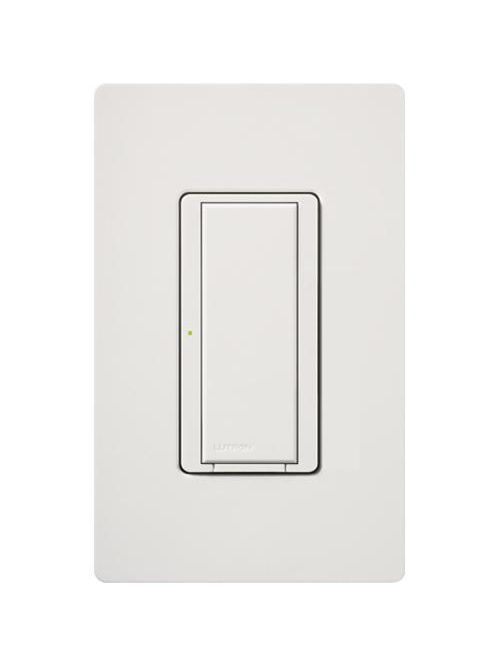

Lutron MRF2-8S-DV-WH 1-Pole/Multi-Location 8 Amp 120/277 VAC White Wall Dimmer Switch
Product image thumbnail 0
Product image thumbnail 1
$151.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MRF2-8S-DV-WH
North Coast Part # 597389

Specifications

  • Maximum Wattage: 8 Amps
  • Bulb Compatibility: CFL/LED, Fluorescent, Incandescent/Halogen, ELV, MLV, General Purpose Fan
  • Application Type: Single-Pole or Multi-Location
  • Color: White (WH)
  • Coordinating Wallplates: Single Gang Wallplate CW-1-XX (Gloss); SC-1-XX (Satin) 2-Gang Wallplate CW-2-XX (Gloss); SC-2-XX (Satin)

Overview

UPC 02755777543
GTiN 00027557775434
Color White
Voltage 120-277 Volt
Type Electronic, Multi-Location, Spec Grade, Dual Volt, Tapswitch, 1-Rocker/Button
Material Plastic/Metal
Applications Lighting Control
Mounting Type Wallbox
Standard CSA,FCC,ICC,UL
Connection Type Screw Terminal
Wattage 2216/831 Watt
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 2216/831 W
Actuator Tapswitch
Contact Configuration NO
Amperage 8 Amp
Blade Dimensions 75 mm W x 119 mm H
Enclosure Material Plastic
Contact Rating 8/3 A
Number of Poles 1 Pole
Bulb Compatibility CFL/LED,ELV,Fluorescent,General Purpose Fan,Incandescent/Halogen,MLV
Sub Brand Maestro Wireless
