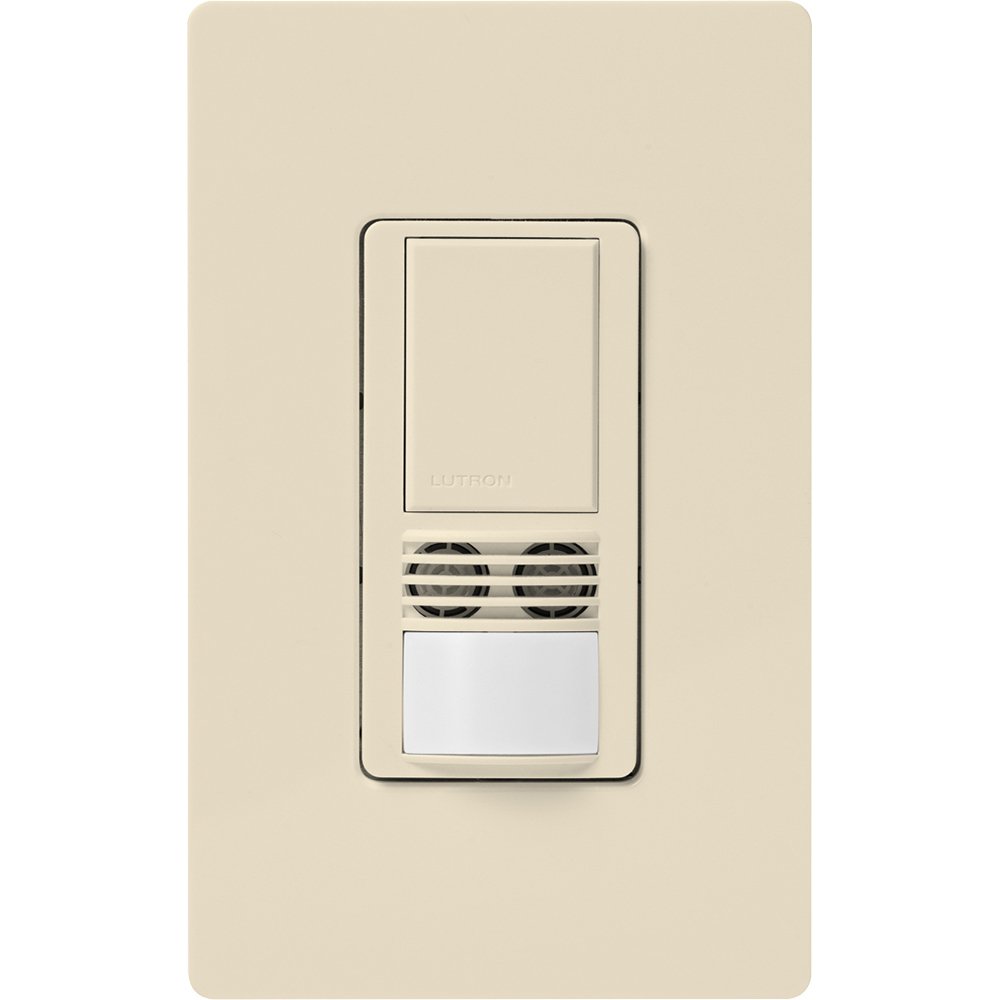

LUT MS-A102-LA MSTRO 1CIR DT SNS O

Features

• Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing
• Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings
• XCT technology for major, minor, fine, and very fine motion detection
• 180 degree field-of-view
• Tamper-resistant PIR lens
• Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
• Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm
• Sensor learns user's preferred light level over time
• Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min
• Can be set to auto-on/auto-off or manual-on/auto-off per circuit
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off)
• Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
• Switches fan loads at 120 V
• Does not require neutral wiring.

Specifications

• Body: Plastic
• Mounting: Wallbox
• Brand Name: Lutron
• Enclosure: Plastic
• Sub Brand: Maestro
• Application: Lighting Control
• Supply Voltage: 120 to 277 VAC
• Pack Description: Box
• Pack Type: EA
• Number of Sub Packs: 1
• Total Units Imperial: 1 EA
• Gross Weight per Pack Imperial: 0.28 L
• Length Imperial: 2.25 IN
• Width Imperial: 2.25 IN
• Height Imperial: 4.5 IN
• Standard: NOM, Title 20/24 certified
• Operating Temperature: 0 to 40 degrees Celsius
• Load: 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan
• Type: Occupancy sensor switch, single-circuit, single-pole
• Indicator: Smart ambient light detection (ALD)/Fixed ambient light detection
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
• Country of Origin: CN
