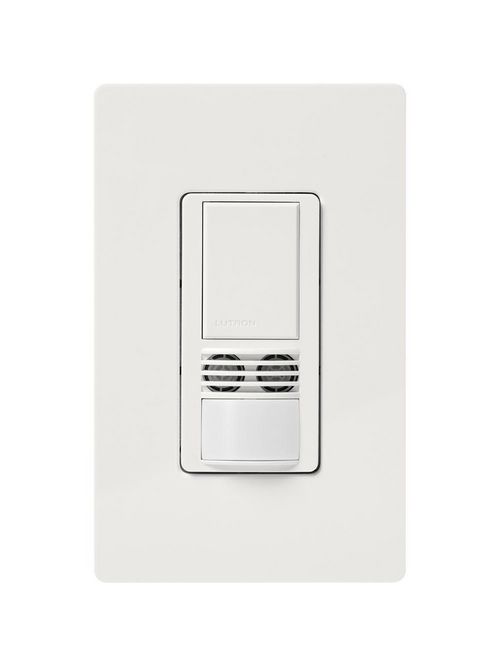

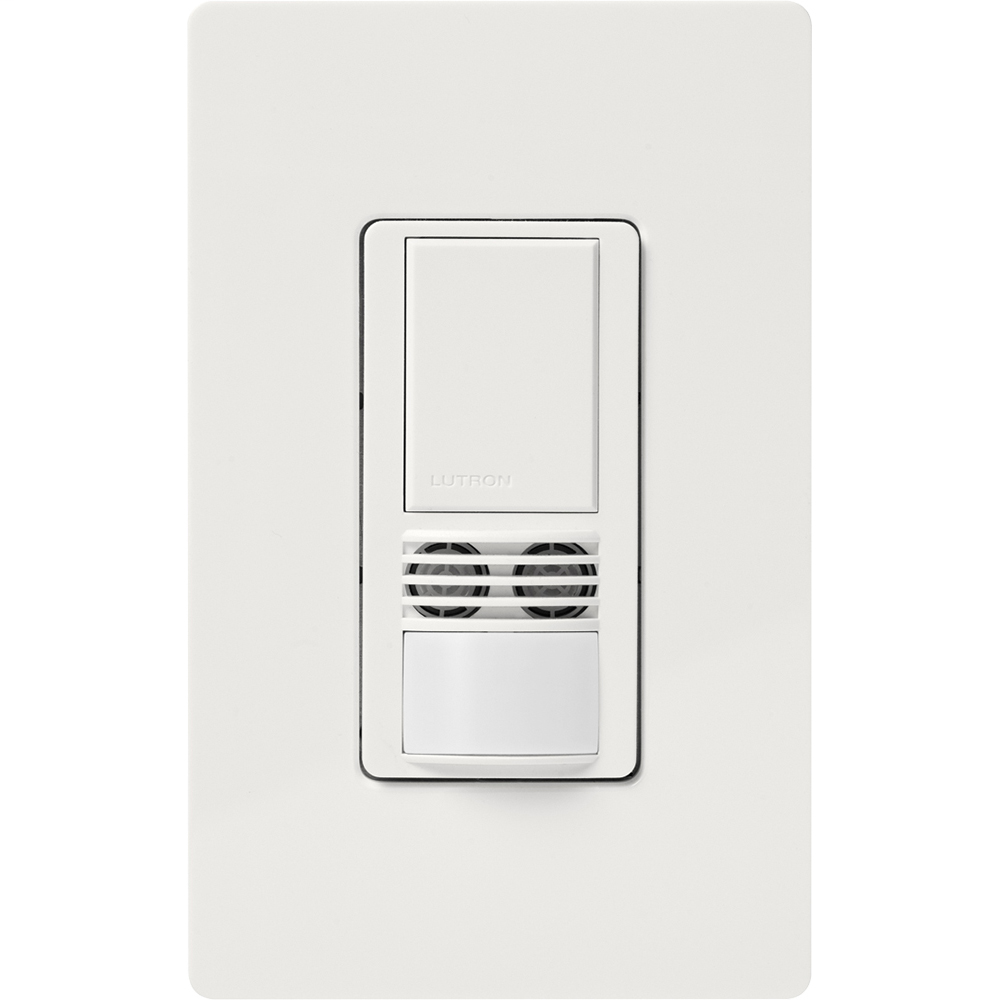

Lutron Electronics MS-A102-WH 120 to 277 VAC 6 Amp 1-Pole White Dual Technology Occupancy Sensor Switch
$107.70/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MS-A102-WH
North Coast Part # 1018307

Features

  • Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing
  • Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings
  • XCT technology for major, minor, fine, and very fine motion detection
  • 180 degree field-of-view
  • Tamper-resistant PIR lens
  • Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
  • Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm
  • Sensor learns user's preferred light level over time
  • Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min
  • Can be set to auto-on/auto-off or manual-on/auto-off per circuit
  • Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
  • Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off)
  • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
  • Switches fan loads at 120 V
  • Does not require neutral wiring.

Specifications

  • Body: Plastic
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Sub Brand: Maestro
  • Application: Lighting Control
  • Supply Voltage: 120 to 277 VAC
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.28 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Standard: NOM, Title 20/24 certified
  • Operating Temperature: 0 to 40 degrees Celsius
  • Load: 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan
  • Type: Occupancy sensor switch, single-circuit, single-pole
  • Indicator: Smart ambient light detection (ALD)/Fixed ambient light detection
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
  • Country of Origin: CN

Categories

Overview

UPC 78427608678
GTiN 00784276086783
Color White, Matte
Operating Temperature 0 To 40 C
Voltage 120-277 Volt
Type Single-Circuit, Indoor
Material Plastic
Applications For Lighting Control
Mounting Type Wall, Flush
Country of Origin China
Standard NOM,Title 20/24 Certified
Body Material Plastic
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Amperage 6 Amp
Response Time 1, 5, 15, 30 min
Blade Dimensions 75 mm W x 30 mm D x 119 mm H
Environmental Conditions 0 To 90% Humidity,Indoor Use Only,Non-condensing
Enclosure Material Plastic
Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Type Ultrasonic
Number of Poles 1 Pole
Enclosure Plastic
Indicator Smart ambient light detection (ALD)/Fixed ambient light detection
Sub Brand Maestro
