Manufacturer Lutron
Mfg Catalog # MS-OPS6M2-DV-HT
North Coast Part # 1687673

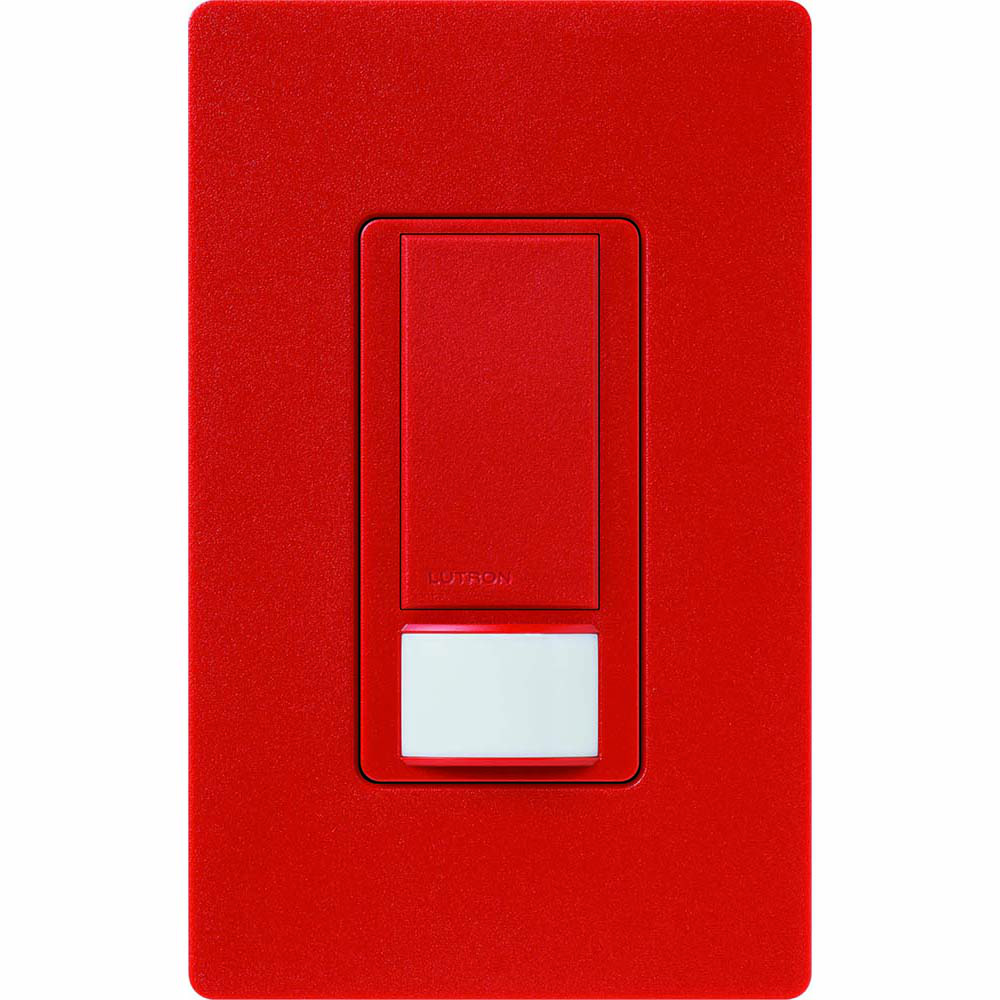

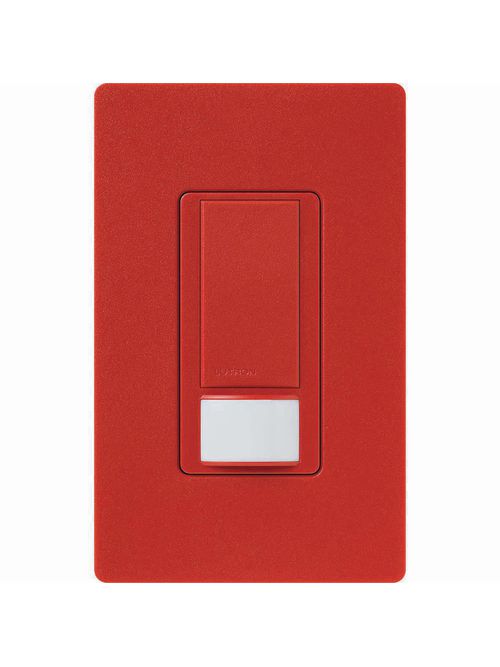

  • Combines a Maestro switch with a passive infrared occupancy sensor
  • Detects the heat from occupants moving within an area to determine whether the space is occupied
  • Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
  • Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • Ground wire required.


  • Country of Origin: CN
  • Superseded Product Catalog Number 1: MS-OPS6M2U-DV-HT
  • Superseded Product UPC 1: 784276060417
  • Superseded Product GTIN 1: 00784276060417
  • Body: Plastic
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Sub Brand: Maestro
  • Standard: UL, cUL, NOM
  • Application: Lighting Control
  • Supply Voltage: 120 to 277 VAC
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.2 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Load: 6 A@120 to 277 VAC lights/3 A@120 VAC fan/3 A@120 VAC light and fan
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Type: Occupancy sensor switch, multi-location/3-way/single-pole, dual-voltage
  • Sensor: Passive infrared motion detection with dependable Lutron XCT technology
  • Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage


UPC 02755798416
Item Long Description Maestro Occupancy-Sensing Switch, Multi-location/single-pole, no neutral wire required, 120/277V in hot
GTiN 00027557984164
Color Hot
Operating Temperature 0 To 40 C
Voltage 120-277 Volt
Type Dual-Voltage,Multi-Location/3-Way/Single-Pole,Occupancy Sensor Switch
Applications Lighting
Mounting Type Wallbox
Country of Origin China
Standard CUL,NOM,UL
Body Material Plastic
Family Brand Name Lutron
Amperage 6 Amp
Environmental Conditions 0 To 90% Humidity,Indoor Use Only,Non-condensing
Enclosure Material Plastic
Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Enclosure Plastic
Sub Brand Maestro
