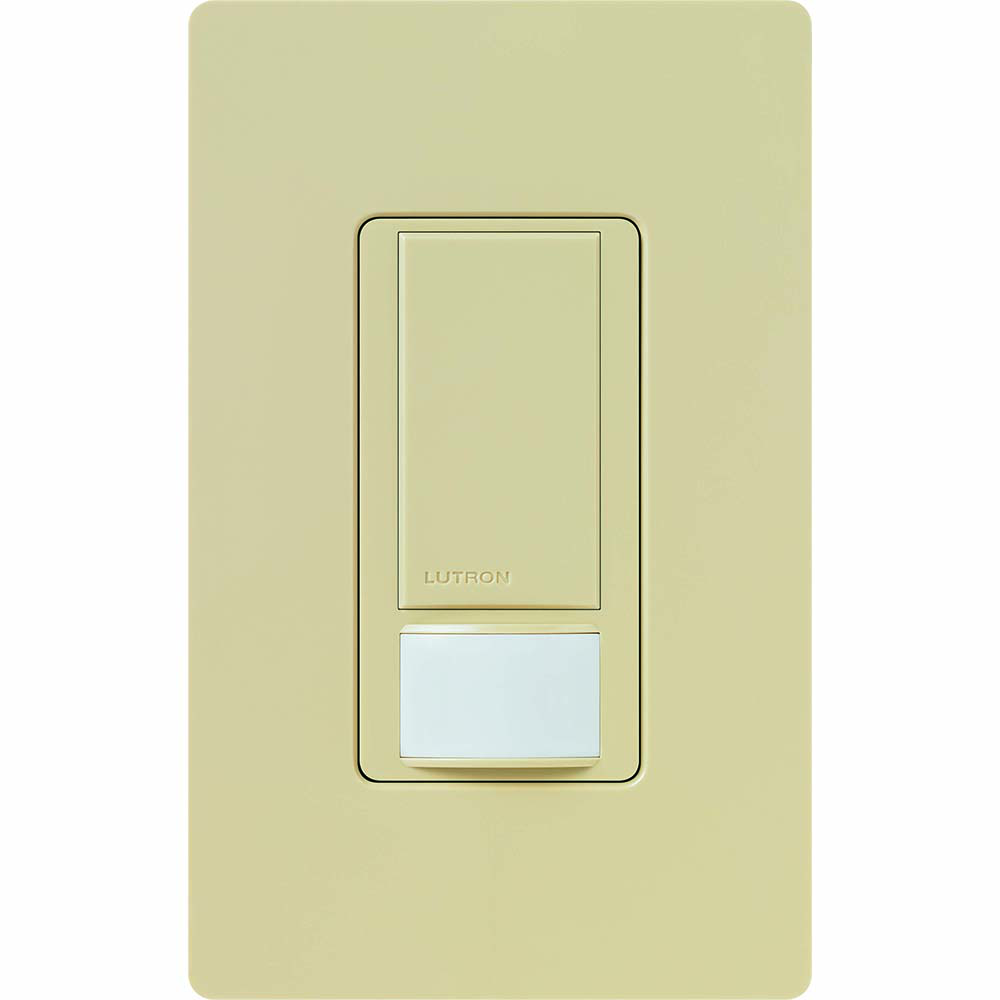

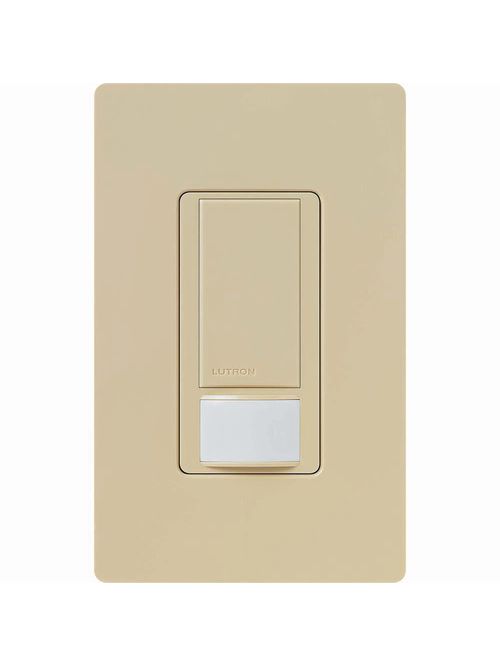

Lutron Electronics MS-VPS2-IV Maestro 250 watt Ivory 1-Pole Vacancy Sensor Switch
$27.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MS-VPS2-IV
North Coast Part # 876929

Features

  • Combines a Maestro switch with a passive infrared occupancy sensor
  • Detects the heat from occupants moving within an area to determine whether the space is occupied
  • Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
  • Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Meets CA Title 24 requirements
  • Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • Ground wire required.

Specifications

  • Load: 2 A
  • Body: Plastic
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Sub Brand: Maestro
  • Supply Voltage: 120 VAC
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.2 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Type: Vacancy sensor switch, single-pole
  • Standard: UL, cUL, NOM, CA Title 24 compliant
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Sensor: Passive infrared motion detection with dependable Lutron XCT technology
  • Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
  • Country of Origin: CN

Overview

UPC 02755798294
GTiN 00027557982948
Color Ivory
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Vacancy sensor switch, single-pole
Applications Lighting
Mounting Type Wallbox
Country of Origin China
Standard UL,CUL,NOM,CA Title 24 Compliant
Body Material Plastic
Family Brand Name Lutron
Amperage 2 Amp
Environmental Conditions 0 to 90 PCT
Enclosure Material Plastic
Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Enclosure Plastic
Sub Brand Maestro
