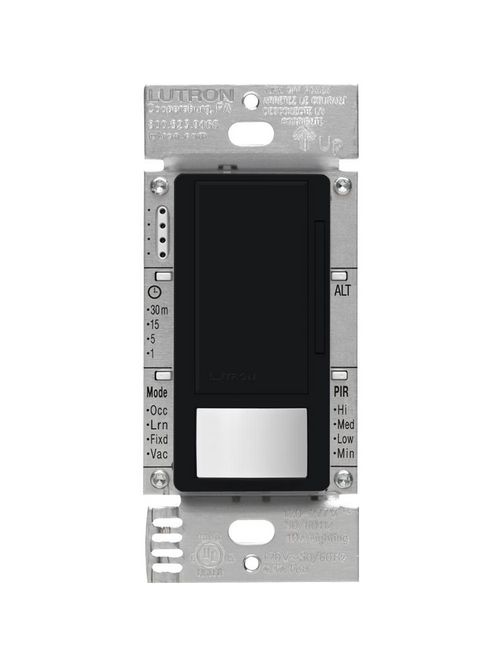

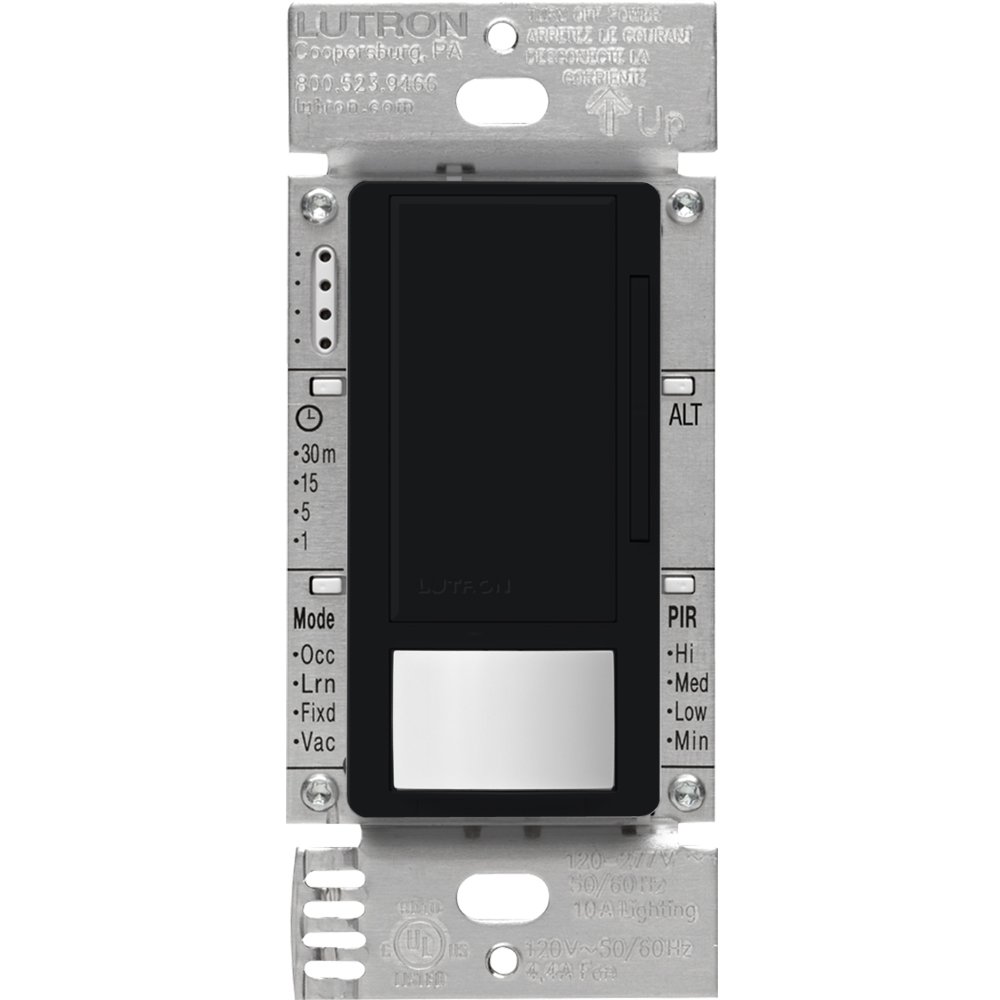

Lutron Electronics MS-Z101-BL 0 to 10 Volt Dimmer Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MS-Z101-BL
North Coast Part # 1160056


  • Passive infrared sensors that automatically control the lights in an area
  • These sensors detect heat from occupants moving within an area to determine when the space is occupied
  • Combines a Maestro 0-10 V dimmer with an occupancy sensor
  • Controls 1-10 VDC electronic fluorescent ballast or LED driver load types
  • Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 3, 5, 15, or 30 minutes)
  • Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
  • Adjustable sensitivity level: High, med, low, min
  • Off warning fades lights to off over a period of 10 seconds
  • Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
  • Adaptive switching algorithm for extended relay life
  • Smart ambient light detection (ALD)
  • Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
  • High-end trim and low-end trim to adjust maximum and minimum light levels
  • Selectable dimming curve-linear or square law
  • Miswire and incompatible load alert


  • Sensor: Yes
  • Body: Plastic
  • Load: 8 A/0-10VDC
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Sub Brand: Maestro
  • Application: Lighting Control
  • Supply Voltage: 120 to 277 VAC
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.32 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 3.375 IN
  • Height Imperial: 4.5 IN
  • Standard: UL, cUL, Title 20/24 certified
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Type: Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V
  • Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
  • Country of Origin: CN


UPC 78427609990
Item Long Description Maestro 0-10V dimmer occupancy/vacancy sensor, passive infrared, 8A fluorescent ballast or LED driver, 120-277V, in black
GTiN 00784276099905
Color Black
Operating Temperature 0 To 40 C
Voltage 120-277 Volt
Type 0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Applications Lighting
Mounting Type Wallbox
Country of Origin China
Standard CUL,Title 20/24 Certified,UL
Body Material Plastic
Family Brand Name Lutron
Amperage 8 Amp
Environmental Conditions 0 To 90% Humidity,Indoor Use Only,Non-condensing
Enclosure Material Plastic
Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Enclosure Plastic
Sub Brand Maestro
