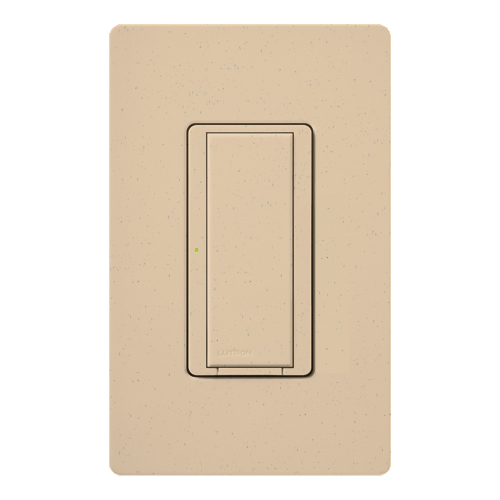

LUT MSC-S8AM-DS MAESTRO SC 8AMP SWI
$61.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # MSC-S8AM-DS
North Coast Part # 333754

Features

  • Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
  • For multi-location switching, use one Maestro multi-location switch with Maestro companion switches
  • Tap switch on/off

Specifications

  • Wattage: 960 W
  • Standard: UL cUL
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Maestro
  • Actuator: Tapswitch
  • Color: Desert Stone
  • Contact Rating: 8 A
  • Insulation: Plastic
  • Amperage Rating: 8 A
  • Voltage Rating: 120 V
  • Material: Plastic/Metal
  • Connection: Screw terminal
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.29 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Electronic switch, multi-location/single-pole
  • Country of Origin: US

Categories

Overview

UPC 02755708289
GTiN 00027557082891
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Desert Stone
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Electronic Switch,Multi-location/single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Standard UL CUL
Connection Type Screw-Type Terminals
Wattage 960 Watt
Family Brand Name Lutron
Insulation Material Plastic
Control Type Main Control
TC Connection Screw terminal
Actuator Tapswitch
Contact Configuration N-O
Amperage 8 Amp
Enclosure Material Plastic
Contact Rating 8 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Maestro
