LUT NLV-1000-BR NOVA 1000VA LOW VOL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$237.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # NLV-1000-BR
North Coast Part # 492625

Features

  • Controls 1000 VA/800 W magnetic low-voltage or neon/cold cathode loads
  • Higher capacity dimmer, requires large heat sink behind wallplate
  • Slide up to brighten, down to dim
  • Measures 4.56 in x 4.56 in
  • Requires large wallplate
  • Fits in 1-gang electrical backbox.

Specifications

  • Wattage: 800 W
  • Actuator: Slide
  • Sub Brand: Nova
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Type: Slide-to-off dimmer, single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.79 L
  • Length Imperial: 5.156 IN
  • Width Imperial: 5.25 IN
  • Height Imperial: 3.688 IN
  • Size: 4.56 in (116 mm) x 4.56 in (116 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Standard: UL CSA NOM, ANSI/IEEE Std. C62.41-1980
  • Country of Origin: KN

Overview

UPC 02755767460

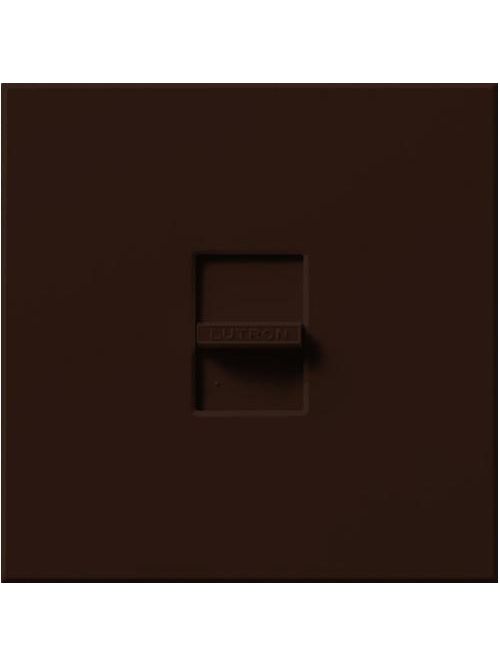

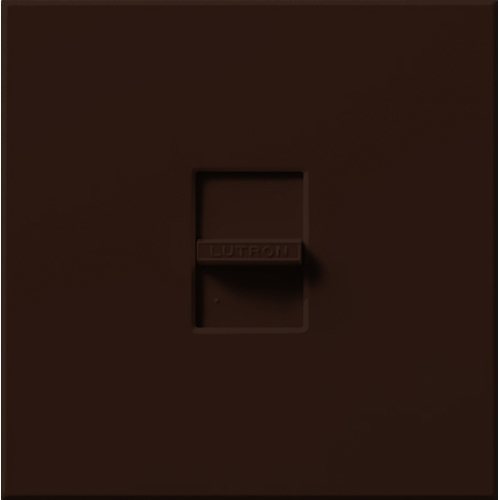

Item Long Description Nova Dimmer, Magnetic Low-Voltage, Neon/Cold Cathode, Single-pole (large control), 120V/1000VA (800W) in brown
GTiN 00027557674607
Size 4.56 in (116 mm) x 4.56 in (116 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Single-pole,Slide-to-off Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Saint Kitts and Nevis
Frequency 60 Hz
Connection Type Wire Leads
Wattage 800 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Slide
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Nova
Standard ANSI/IEEE Std. C62.41-1980,UL CSA NOM
