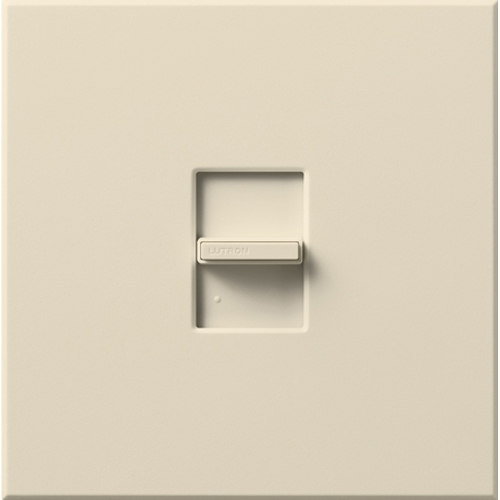

LUT NT-1503P-LA NOVA T INC DMR 1500

Features

• Controls 1500 W incandescent/halogen loads
• Higher capacity dimmer, requires larger heat sink behind wallplate
• Button turns on/off to slider level
• Slide up to brighten, down to dim
• Measures 4.56 in x 4.56 in
• Requires large wallplate
• Most can fit in a 1-gang electrical backbox.

Specifications

• Actuator: Slide
• Wattage: 1500 W
• Mounting: Wallbox
• Sub Brand: Nova T
• Brand Name: Lutron
• Enclosure: Plastic
• Number Of Poles: 1
• Insulation: Plastic
• Voltage Rating: 120 V
• Connection: Wire Leads
• Standard: UL, CSA, NOM
• Frequency Rating: 60 Hz
• Material: Plastic/Metal
• Application: Lighting Control
• Type: Preset dimmer, 3-way/single-pole
• Pack Description: Box
• Pack Type: EA
• Number of Sub Packs: 1
• Total Units Imperial: 1 EA
• Gross Weight per Pack Imperial: 0.51 L
• Length Imperial: 5.156 IN
• Width Imperial: 5.25 IN
• Height Imperial: 3.688 IN
• Size: 4.56 in (116 mm) x 4.56 in (116 mm)
• Operating Temperature: 0 to 40 degrees Celsius
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Country of Origin: KN
