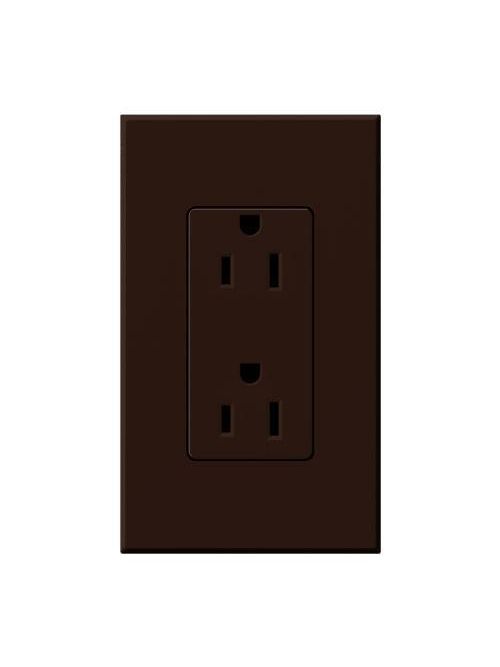

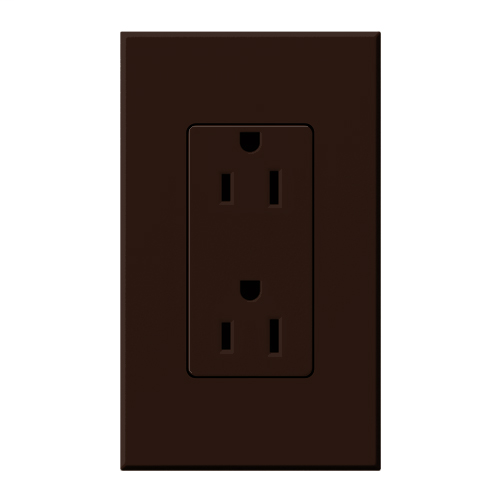

LUT NTR-15-BR NOVA T RECEPTACLE BRO
Product image thumbnail 0
Product image thumbnail 1
$25.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # NTR-15-BR
North Coast Part # 346590

Features

  • Includes 1-gang wallplate

Specifications

  • Color: Brown (BR)
  • Standard: UL
  • Wattage: 1875 W
  • Type: Receptacle
  • Mounting: Wallbox
  • Brand Name: Lutron
  • NEMA Rating: 5-15R
  • Number Of Poles: 2
  • Insulation: Plastic
  • Amperage Rating: 15 A
  • Voltage Rating: 125 V
  • Number Of Wires: 3,4,5
  • Material: Plastic/Metal
  • Wire Size: 10 to 14 AWG
  • Sub Brand: Architectural
  • Connection: Screw terminal
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.4 L
  • Length Imperial: 4.063 IN
  • Width Imperial: 5.219 IN
  • Height Imperial: 2.844 IN
  • Size: 4.56 in (116 mm) x 2.75 in (70 mm)
  • Temperature Rating: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing
  • Country of Origin: KN

Overview

UPC 02755767907
GTiN 00027557679077
Size 4.56 in (116 mm) x 2.75 in (70 mm)
Color Brown
Voltage 125 Volt
Type Receptacle
Material Metal,Plastic
Mounting Type Wallbox
Country of Origin Saint Kitts and Nevis
Wire Size 14-10 AWG
Standard UL
Connection Type Screw-Type Terminals
Wattage 1875 Watt
Temperature Rating 0 To 40 C
Family Brand Name Lutron
Receptacle Type Duplex Outlet
Insulation Material Plastic
NEMA 5-15R
TC Connection Screw terminal
Amperage 15 Amp
Environmental Conditions 0 To 90% Humidity,Non-condensing
Number of Poles 2 Pole
Number of Wires 3,4,5
Sub Brand Architectural
