Manufacturer | Lutron |
---|---|
Mfg Catalog # | NTR-15-HDTR-WH |
North Coast Part # | 820368 |
UPC | 02755778032 |

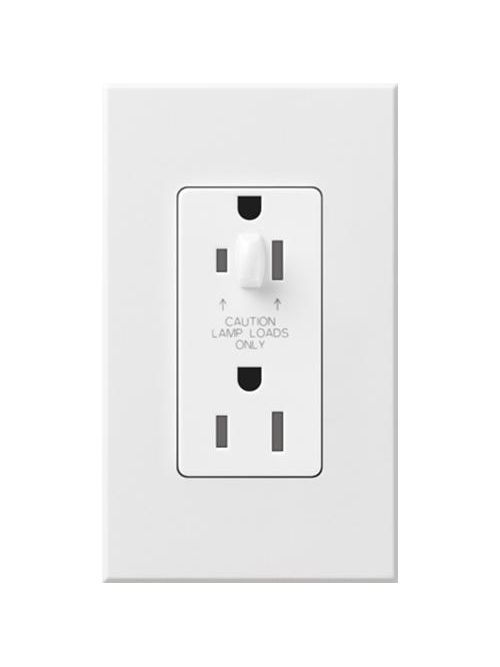

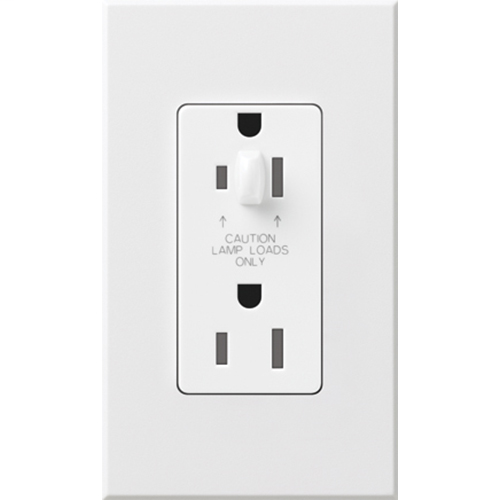

Item Long Description | Half tamper resistant receptacle (Gloss), 15A/125V in white |
GTiN | 00027557780322 |
Size | 4.56 in (116 mm) x 2.75 in (70 mm) |
Color | White |
Voltage | 125 Volt |
Type | Receptacle For Half-dimming Use |
Material | Metal,Plastic |
Applications | Lighting |
Mounting Type | Wallbox |
Country of Origin | China |
Wire Size | 14-10 AWG |
Standard | CSA,NOM,UL |
Connection Type | Screw-Type Terminals |
Wattage | 1875 Watt |
Temperature Rating | 0 To 40 C |
Family Brand Name | Lutron |
Insulation Material | Plastic |
NEMA | 5-15R |
TC Connection | Screw terminal |
Amperage | 15 Amp |
Environmental Conditions | 0 To 90% Humidity,Non-condensing |
Number of Poles | 2 Pole |
Number of Wires | 3,4,5 |
Sub Brand | Architectural |
