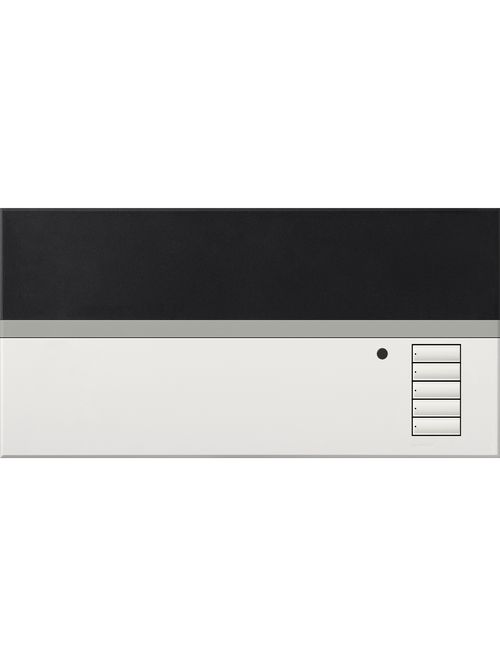

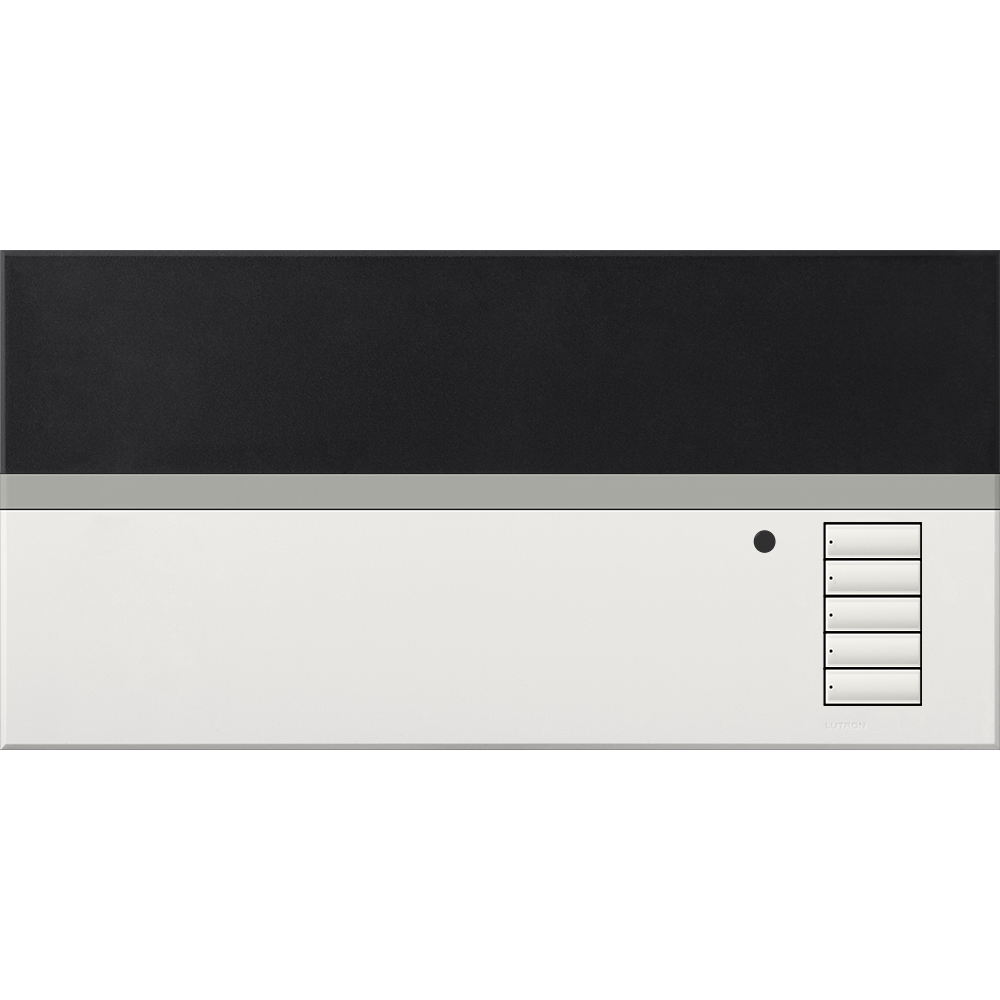

LUT QSGRJ-4P-TWH 434 MHZ 4 ZONE TRI
$1,306.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # QSGRJ-4P-TWH
North Coast Part # 1167313

Features

  • 4 zone base unit for Grafik Eye QS, with translucent cover
  • Controls up to six zones of light and will operate incandescent, LED/CFL, Tungsten halogen, electronic low-voltage, magnetic low-voltage, metal halide/high pressure sodium switched, neon/cold cathode, and Lutron Tu-Wire electronic fluorescent dimming ballast loads with a continuous Square Law dimming curve or on a full conduction non-dim basis.

Specifications

  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Actuator: Push-button
  • Mounting: Surface mount
  • Sub Brand: GRAFIK Eye QS
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Contact Rating: 120, 220 to 240 VAC
  • Voltage Rating: 120, 220 to 240 VAC
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 2.75 L
  • Length Imperial: 5.5 IN
  • Width Imperial: 10.75 IN
  • Height Imperial: 2.875 IN
  • Size: 4.69 in (119 mm) x 9.38 in (239 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Standard: UL, CSA, FCC, IC, SCT, NOM, CEC (title24)
  • Type: Light/shade control unit, 4 zones, translucent cover, wireless capability
  • Country of Origin: US

Overview

UPC 02755764145
GTiN 00027557641456
Size 4.69 in (119 mm) x 9.38 in (239 mm)
Operating Temperature 0 To 40 C
Voltage 240 Volt
Type Light/shade control unit, 4 zones, translucent cover, wireless capability
Applications Lighting
Mounting Type Surface
Country of Origin United States
Standard NOM,UL,FCC,IC,SCT,CEC (title24),CSA
Family Brand Name Lutron
Actuator Push-button
Contact Configuration N-O
Enclosure Material Plastic
Contact Rating 240 V
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand GRAFIK Eye QS
