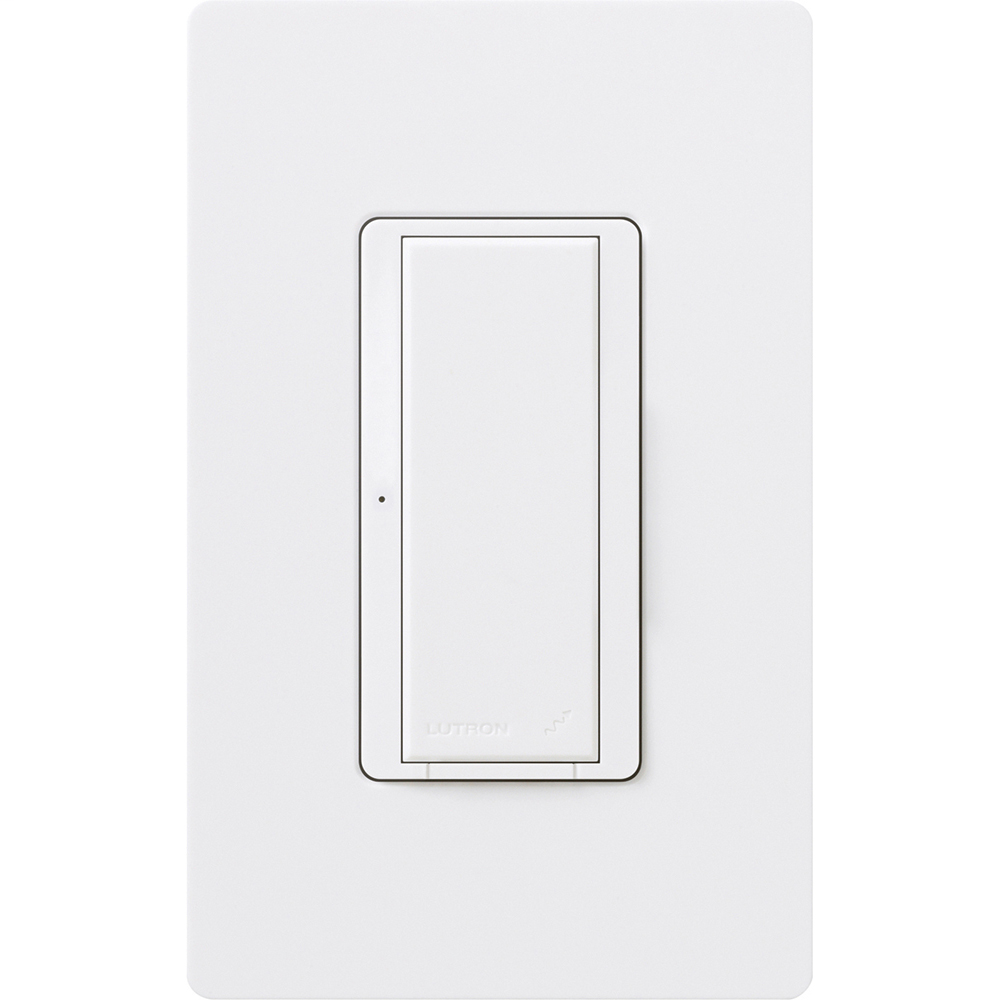

Lutron Electronics RRD-8ANS-WH 1-Pole 8 Amp 120 VAC 10 W White Multi-Location Electronic Switch with Neutral Wire
$175.79/ea
In Stock | 5 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # RRD-8ANS-WH
North Coast Part # 606221

Features

  • Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads
  • Neutral wire required
  • Tap switch on/off.

Specifications

  • Color: White (WH)
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Wattage: 960/696 W
  • Actuator: Tapswitch
  • Insulation: Plastic
  • Sub Brand: RadioRA 2
  • Voltage Rating: 120 V
  • Contact Rating: 8/5.8 A
  • Material: Plastic/Metal
  • Amperage Rating: 8/5.8 A
  • Connection: Screw terminal
  • Contact Configuration: N-O
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.29 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Standard: UL, CSA, NOM, FCC, IC, COFETEL, ANATEL
  • Type: Wireless electronic switch, multi-location/single-pole
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: MX

Categories

Overview

UPC 02755777182
GTiN 00027557771825
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color White
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Multi-location/single-pole,Wireless Electronic Switch
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard ANATEL,COFETEL,CSA,FCC,IC,NOM,UL
Connection Type Screw-Type Terminals
Wattage 696 Watt
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 960/696 W Incandescent/Halogen, LED/CFL, Fluorescent
TC Connection Screw terminal
Actuator Tapswitch
Contact Configuration N-O
Amperage 8/5.8 Amp
Blade Dimensions 2.94 in W x 4.69 in H
Environmental Conditions 0 To 90% Humidity,Indoor Use Only,Non-condensing
Enclosure Material Plastic
Contact Rating 8/5.8 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand RadioRA 2
