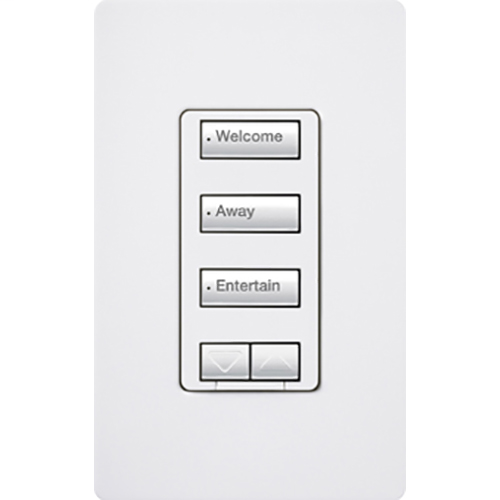

LUT RRD-H3BSRL-WH RA2 HYBRID 3BSRL

Features

• 3 button with raise/lower keypad and 450W/450VA two-wire or neutral-wire dimmer (Incandescent/Halogen/Magnetic Low Voltage), 120V
• Great for retrofit applications since they eliminate the need to install two separate devices
• Connecting the neutral wire to a Hybrid keypad allows a lower minimum load to be used
• Normal keypad operations will be available if the attached load is not installed or if the lamp is burned out
• Can be controlled as part of a lighting control system and incorporates advanced features such as fade on/fade off and rapid full on
• Easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night
• Buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability
• Front accessible service switch for safe lamp replacement
• Wallplate sold separately.

Specifications

• Mounting: Wallbox
• Brand Name: Lutron
• Enclosure: Plastic
• Number Of Poles: 1
• Insulation: Plastic
• Sub Brand: RadioRA 2
• Actuator: Push-button
• Material: Plastic/Metal
• Voltage Rating: 120 VAC
• Type: Hybrid keypad dimmer
• Application: Lighting Control
• Standard: UL CSA NOM FCC IC COFETEL
• Size: 4.69 in (119 mm) x 2.94 (75 mm)
• Pack Description: Box
• Pack Type: EA
• Number of Sub Packs: 1
• Total Units Imperial: 1 EA
• Gross Weight per Pack Imperial: 0.5 L
• Length Imperial: 5.156 IN
• Width Imperial: 5.25 IN
• Height Imperial: 3.688 IN
• Operating Temperature: 0 to 40 degrees Celsius
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Country of Origin: MX
