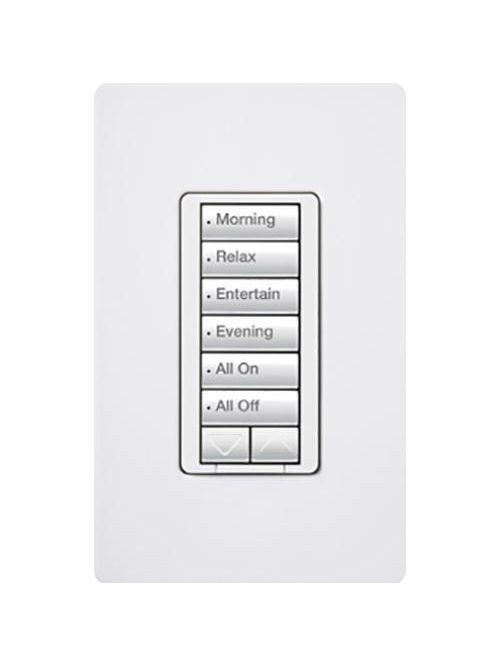

Lutron Electronics RRD-H6BRL-WH 30 Foot 120 VAC 450 W 6-Button White wall Mount Hybrid Keypad
Product image thumbnail 0
Product image thumbnail 1
$545.51/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # RRD-H6BRL-WH
North Coast Part # 667171

Features

  • 6 button with raise/lower keypad and 450W/450VA two-wire or neutral-wire dimmer (Incandescent/Halogen/Magnetic Low Voltage), 120V
  • Great for retrofit applications since they eliminate the need to install two separate devices
  • Connecting the neutral wire to a Hybrid keypad allows a lower minimum load to be used
  • Normal keypad operations will be available if the attached load is not installed or if the lamp is burned out
  • Can be controlled as part of a lighting control system and incorporates advanced features such as fade on/fade off and rapid full on
  • Easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night
  • Buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability
  • Front accessible service switch for safe lamp replacement
  • Wallplate sold separately.

Specifications

  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Sub Brand: RadioRA 2
  • Actuator: Push-button
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Type: Hybrid keypad dimmer
  • Application: Lighting Control
  • Size: 4.69 in (119 mm) x 2.94 (75 mm)
  • Standard: UL, CSA, NOM, FCC, IC, COFETEL
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.45 L
  • Length Imperial: 5.156 IN
  • Width Imperial: 5.25 IN
  • Height Imperial: 3.688 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: MX

Overview

UPC 02755786900
GTiN 00027557869003
Size 4.69 in (119 mm) x 2.94 (75 mm)
Operating Temperature 0 - 40 C
Voltage 120 Volt
Type Push Button, Hybrid Keypad
Material Plastic
Applications For Incandescent/Halogen Lighting Control
Mounting Type Wallbox
Country of Origin Mexico
Standard COFETEL,CSA,FCC,IC,NOM,UL
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 450 W/450 VA Incandescent/Halogen/Magnetic Low-Voltage
Actuator Push-button
Blade Dimensions 2.94 in W x 1.44 in D x 4.69 in H
Environmental Conditions 0 - 90% RH Non-Condensing
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand RadioRA 2
