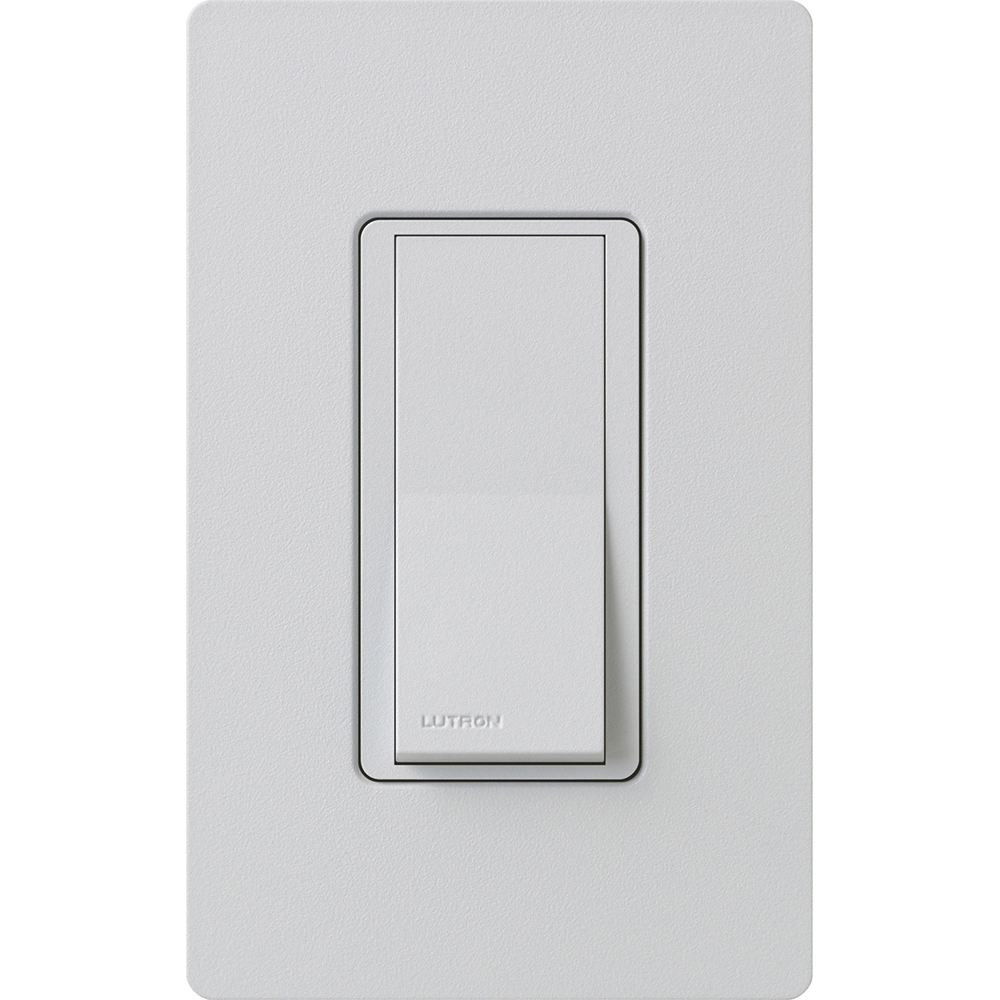

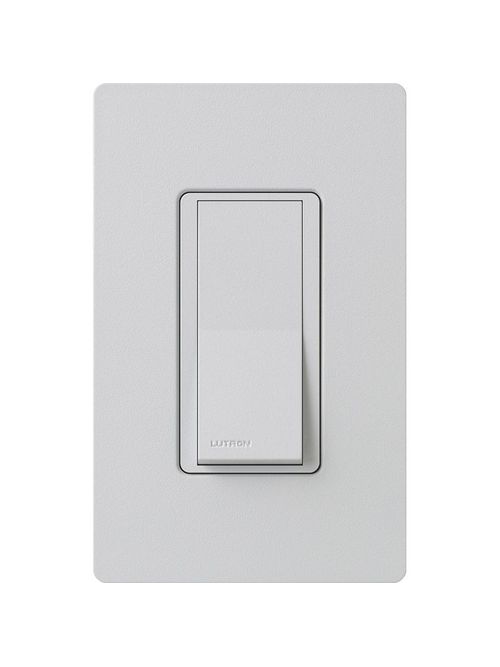

LUT SC-4PS-PD SC 4WY SWITCH PD
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.27/ea
In Stock | 4 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # SC-4PS-PD
North Coast Part # 674876

Features

  • Rated for 15 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or general purpose fans and motor loads
  • Paddle turns on/off
  • Use with any 15 A load
  • General purpose switching of all light sources and motor loads.

Specifications

  • Sub Brand: Diva
  • Color: Palladium (PD)
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Contact Rating: 15 A
  • Wattage: 1800/4155 W
  • Amperage Rating: 15 A
  • Standard: UL, cUL, NOM
  • Actuator: Paddle switch
  • Material: Plastic/metal
  • Voltage Rating: 120/277 VAC
  • Application: Lighting Control
  • Type: Mechanical switch, 4-way
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Contact Configuration: Screw terminal
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Country of Origin: KR

Categories

Overview

UPC 02755726617
Item Long Description Claro Switch, Satin Finish, 4-way, 120V/15A in palladium
GTiN 00027557266178
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Palladium
Voltage 120 Volt
Type 4-Way,Mechanical Switch
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin South Korea
Standard CUL,NOM,UL
Wattage 1800 Watt
Family Brand Name Lutron
Actuator Paddle Switch
Contact Configuration Screw terminal
Amperage 15 Amp
Enclosure Material Plastic
Contact Rating 15 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
