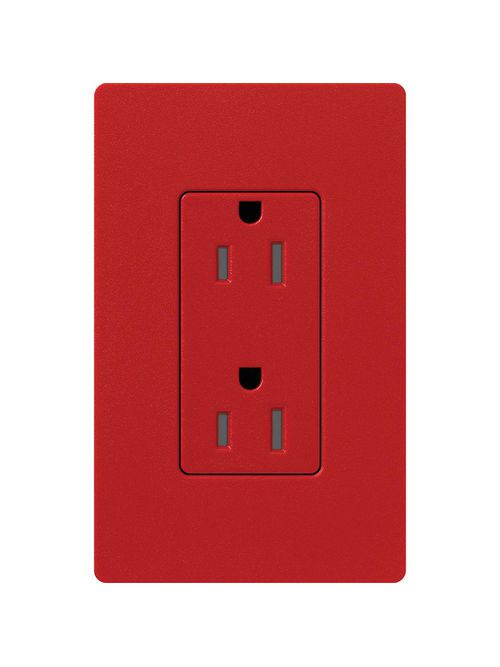

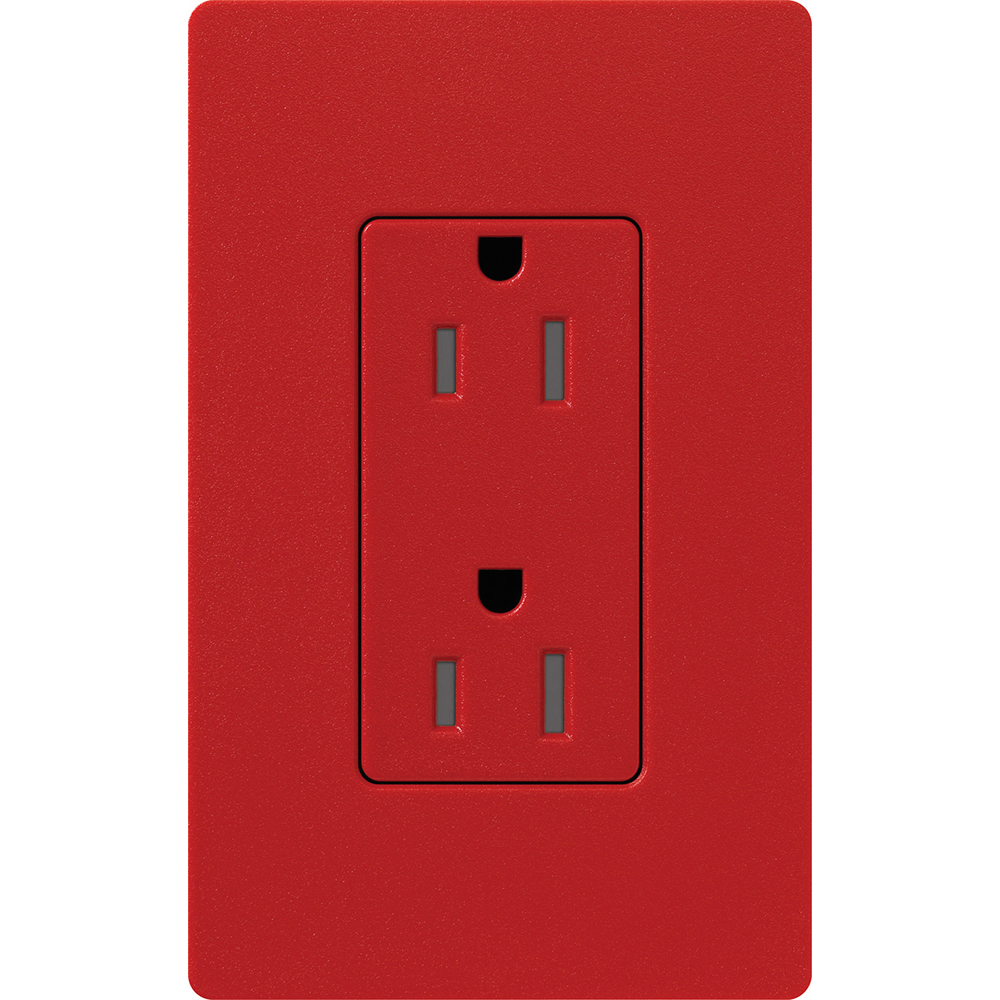

LUT SCRS-15-TR-HT SC 15A TAMPER RES
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$25.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # SCRS-15-TR-HT
North Coast Part # 826939

Features

  • Includes shutter mechanism (shutters are white)
  • Wallplate sold separately.

Specifications

  • Color: Hot
  • Wattage: 1875 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Number Of Poles: 2
  • Insulation: Plastic
  • Sub Brand: Designer
  • Amperage Rating: 15 A
  • Voltage Rating: 125 V
  • Number Of Wires: 3,4,5
  • Material: Plastic/Metal
  • Wire Size: 10 to 14 AWG
  • Connection: Screw terminal
  • Type: Tamper-resistant receptacle
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.25 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Temperature Rating: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing
  • Country of Origin: CN

Categories

Overview

UPC 02755761837
Item Long Description Claro, Satin, Tamper-resistant receptacle, 125V/15A in hot
GTiN 00027557618373
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Hot
Voltage 125 Volt
Type Tamper-resistant Receptacle
Material Metal,Plastic
Mounting Type Wallbox
Country of Origin China
Wire Size 14-10 AWG
Connection Type Screw-Type Terminals
Wattage 1875 Watt
Temperature Rating 0 To 40 C
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Screw terminal
Amperage 15 Amp
Environmental Conditions 0 To 90% Humidity,Non-condensing
Number of Poles 2 Pole
Number of Wires 3,4,5
Sub Brand Designer
