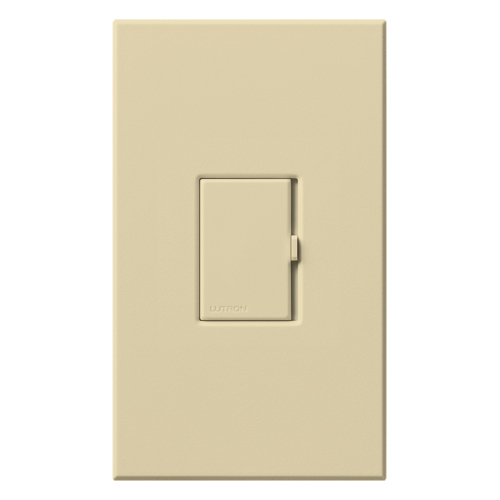

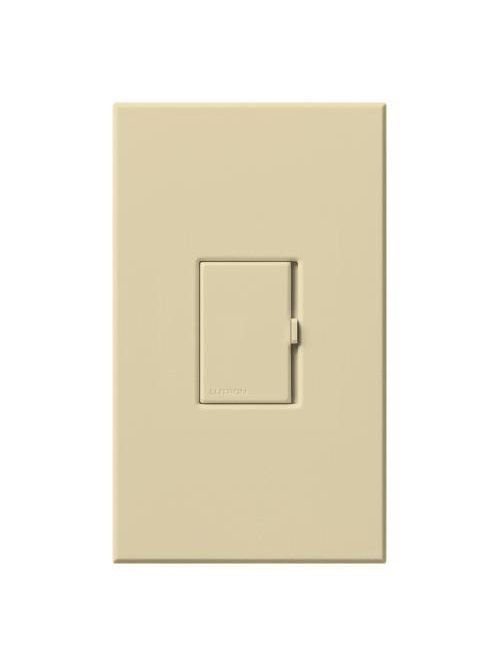

LUT V-600-IV VAREO 600VA INC/LOW VO
Product image thumbnail 0
Product image thumbnail 1
$108.23/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # V-600-IV
North Coast Part # 269102

Details

  • Matching switches available
  • Available in 10 colors
  • Heavy duty components for surge protection and long product life
  • Large tap switch and discreet slide dimmer
  • Includes wallplate
  • For multi-location switching, use VETS-R companion switch
  • Incandescent/halogen and magnetic low voltage models available
  • Controls up to 1000W
  • Sophisticated thin profile
  • One model number for single pole or 3-way, incandescent or magnetic low-voltage

Specifications

  • Dimmer Wattage Capacity: Up to 600 Watts
  • Color: Ivory

Matte Finish Color

Ivory (IV)

Additional Product Information

  • Do not connect to receptacles, fluorescent fixtures, motor-operated appliances or transformer-supplied appliances.
  • Cannot use with 3-way or 4-way switches.
  • Connect only No. 12 or 14 gauge copper or copper-clad wire to this device. Do not connect aluminum wire to this device. See device for strip length.
  • In multi-location applications, only one dimmer can be used.
  • Do not use for electronic low voltage lighting.
  • In multi-phase applications, use a separate neutral with each phase containing a control circuit.
  • Use dimmer with core and coil low voltage transformers.
  • Do not use with compact fluorescent lamps .

Overview

UPC 02755768875
GTiN 00027557688758
Size 4.56 in (116 mm) x 2.75 in (70 mm)
Color Ivory
Operating Temperature 0 to 40 C
Voltage 120 Volt
Type Multi-location/single-pole,Preset Dimmer
Material Metal,Plastic
Applications Lighting Control
Mounting Type Wallbox
Standard UL CSA NOM ISO 9001
Frequency 60 Hz
Connection Type Wire Leads
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Tapswitch
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Vareo
