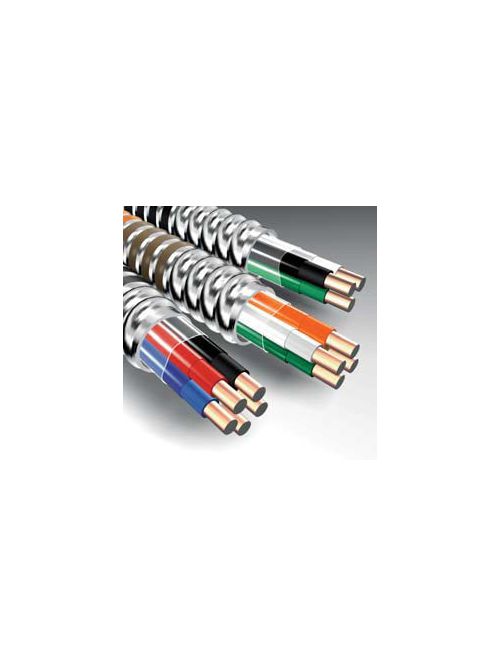

AFC 2158S42-00 12-2 MC LITE STRANDE
$1,094.44/m (1000 ft)
In Stock | 84250 available at 27 locations
ft
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer MC Cable
Mfg Catalog # 2158S42-00
North Coast Part # 419168
MC Lite Type MC Cable, Traditional, With Ground And Neutral, 2 Conductors, 12 AWG Conductor And Ground, Stranded Copper, Outside Diameter: 0.495 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Interlocking Aluminum Strip Armor, Color: 120/208 V: Black, White, Green, 250 FT Coil, Weight: 110 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Numbers E80042 And R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant, ISO 9001 Certified. ColorSpec ID System

Overview

Family Brand Name AFC Cable Systems
UPC 07768023034
GTiN 00077680230348
Length 250 ft
Color Black/White/Green
Type Traditional Type MC Cable With Ground And Neutral
Number of Conductors 2
Conductor Size 12 AWG Conductor And Ground
Weight 0.11 lb
Temperature Rating 90 C
Insulation Material THHN
Conductor Material Copper
Outside Diameter 0.495 in
Sub Brand MC Lite
Voltage 600 Volt
