Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 2CL350BB
North Coast Part # 552722


  • Fiberglass bodies for dimensional stability in harsh environments
  • Catalog number stamped into terminal for permanent identification
  • 250VAC Rated
  • Shorter in length, smaller dimensions than standard 600VAC rated cable limiters


  • Self Certified


  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Rated Voltage Ac Ul: 250 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Product Diameter: 1.11 in
  • Country Of Origin: MX
  • Product Line: 2CL
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper
  • Connection Terminal Type: Blade To Blade
  • Mounting: Bolted


UPC 78200134598
Family Brand Name Ferzshaw

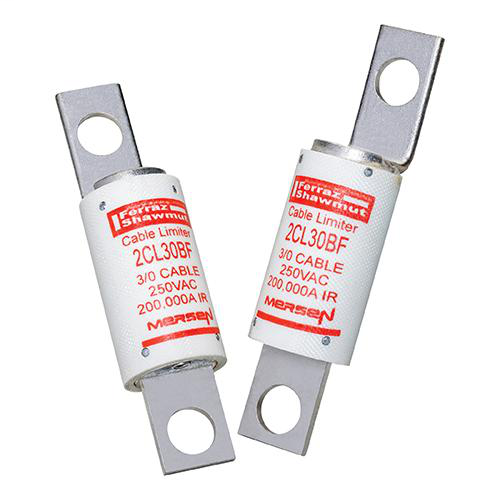

Item Long Description Mersen 2CL cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are 250VAC current-limiting with a 200,000A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. These cable protectors are rated both for copper and aluminum cabling per their corresponding cable size.
GTiN 00782001345983
Length 4 in
Type Cable Protector
Diameter 1.11 in
Terminal Type Blade To Blade
Applications Multiple cables in a run, underground cables
Mounting Type Bolted
Weight 1.2 lb
Pkg Qty 1
Insulation Material GMG
TC Connection Blade To Blade
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Voltage 250 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
