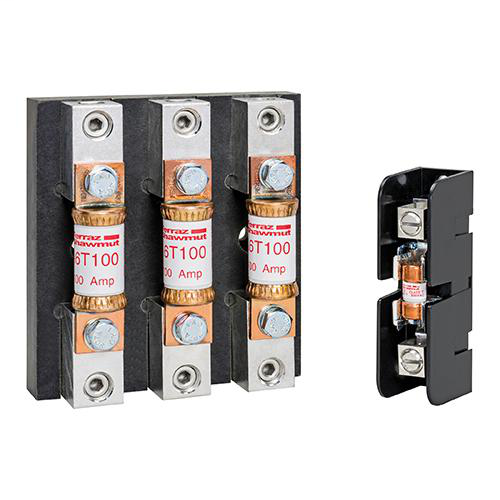

FERRAZ 60358T 67584-FB 3P 600V-30A
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 60358T
North Coast Part # 668897


  • Unique integral DIN-rail adapters for 600V, 30 & 60A blocks
  • Full barrier design (30 & 60A) increases pole to pole safety
  • Unique adder-block design (30 & 60A) for design flexibility
  • Spring reinforcing standard for all 30 & 60A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 - 600A) connectors
  • Copper connectors available 30 - 600A


  • Sell Pack Height: 3.5 in
  • Product Weight: 0.37 lb
  • Product Length: 3.13 in
  • Product Width: 2.75 in
  • Ampere Rating: 30 A
  • Installation Mounting: Screw Mount or DIN Rail
  • Fuse Type/Class: Class T
  • Product Height: 1.56 in
  • ROHS Compliant: Yes
  • Sell Pack Width: 6.5 in
  • Sell Pack Length: 7 in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 30 A
  • Sell Pack Quantity: 5 Each
  • Fuse Installation Method: Clip-in
  • Short Circuit Current Rating (SCCR): 200
  • Fuse Class: Class T
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Number of Poles: 3-pole

Approvals & Standards

  • All fuse blocks meet the requirements of UL 4248
  • UL listed, guide IZLT, File E52283
  • UL recognized component guide IZLT2, file E52283
  • CSA certified class 6225, File 32169
  • Approvals & Standards



UPC 78200167584
Family Brand Name Ferraz Shawmut
GTiN 00782001675844
Length 3.13 in
Width 2.75 in
Type Open Style
Mounting Type DIN Rail,Screw Mount
Height 1.56 in
Weight 0.37 lb
Pkg Qty 5
Class T
Insulation Material GFPC
TC Connection CU Box
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 3 Pole
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class T
Voltage null
