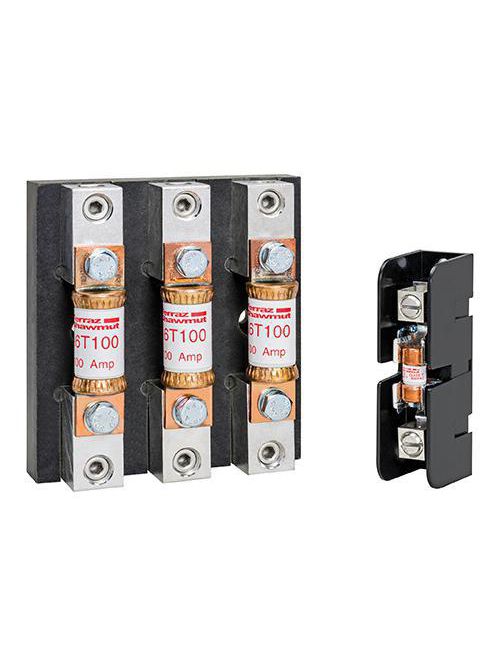

FERRAZ 60605T 67557-FB ADDER 600V-6
$18.90/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 60605T
North Coast Part # 335745

Features

  • Unique integral DIN-rail adapters for 600V, 30 & 60A blocks
  • Full barrier design (30 & 60A) increases pole to pole safety
  • Unique adder-block design (30 & 60A) for design flexibility
  • Spring reinforcing standard for all 30 & 60A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 - 600A) connectors
  • Copper connectors available 30 - 600A

Specifications

  • Sell Pack Height: 3.38 in
  • Product Weight: 0.2 lb
  • Product Length: 3.9 in
  • Product Width: 1.49 in
  • Ampere Rating: 60 A
  • Installation Mounting: Screw Mount or DIN Rail
  • Fuse Type/Class: Class T
  • Product Height: 2.2 in
  • ROHS Compliant: Yes
  • Sell Pack Width: 4.88 in
  • Sell Pack Length: 10.75 in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 60 A
  • Sell Pack Quantity: 10 Each
  • Fuse Installation Method: Clip-in
  • Short Circuit Current Rating (SCCR): 200
  • Fuse Class: Class T
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Number of Poles: Adder

Approvals & Standards

  • All fuse blocks meet the requirements of UL 4248
  • UL listed, guide IZLT, File E52283
  • UL recognized component guide IZLT2, file E52283
  • CSA certified class 6225, File 32169
  • Approvals & Standards

Overview

UPC 78200167557
Family Brand Name Ferraz Shawmut
GTiN 00782001675578
Length 3.9 in
Width 1.49 in
Type Open Style
Mounting Type DIN Rail,Screw Mount
Height 2.2 in
Weight 0.2 lb
Pkg Qty 10
Class T
Insulation Material GFPC
TC Connection Box
Amperage 60 Amp
Fuse Interrupt Rating 60 A
Number of Poles Adder
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class T
Voltage null
