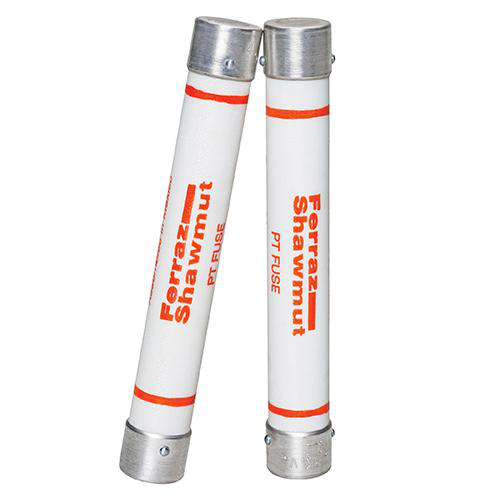

FERRAZ 9F60BDD905 PT EJ-1 F8I 5.5KV
Product image thumbnail 0
Product image thumbnail 1
$375.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 9F60BDD905
North Coast Part # 822390

Features

  • Ferrule mounting for standard clips and interchangeability with other brands of fuses
  • Current-limiting for superior equipment protection
  • Non-venting for silent operation
  • Metal embossed catalog number and manufacturing date for lasting identification
  • Blown-fuse indicator to give positive identification of open fuse fuse is available on the 9F60 series

Applications

  • Primary protection for potential transformers (PT) or control power transformers (CPT)

Specifications

  • Rated voltage AC UL: 5500 V
  • Ampere Rating: 0.5 A
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 63 kA
  • Indication System: Yes
  • Indication System Type: Visual Indicator
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Epoxy

Product Dimensions

  • Product Weight: 1.7 lb
  • Product Diameter: 1.56 in
  • Product Length: 9.5 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 1.79 lb
  • Sell Pack Width: 2.12 in
  • Sell Pack Length: 13.31 in
  • Sell Pack Height: 2.19 in

Overview

UPC 78200139799
Family Brand Name Ferraz Shawmut
GTiN 00782001397999
Length 9.5 in
Type Potential Transformer Protection Fuses
Diameter 1.56 in
Terminal Type Ferrule
Applications Primary protection for potential transformers or control power transformers
Mounting Type Clip
Weight 1.7 lb
Pkg Qty 1
Insulation Material Epoxy
TC Connection Ferrule
Amperage 0.5 Amp
Indicator Visual Indicator
Terminal Material Copper
Rated Voltage AC 5500 V
Voltage 5500 VAC
