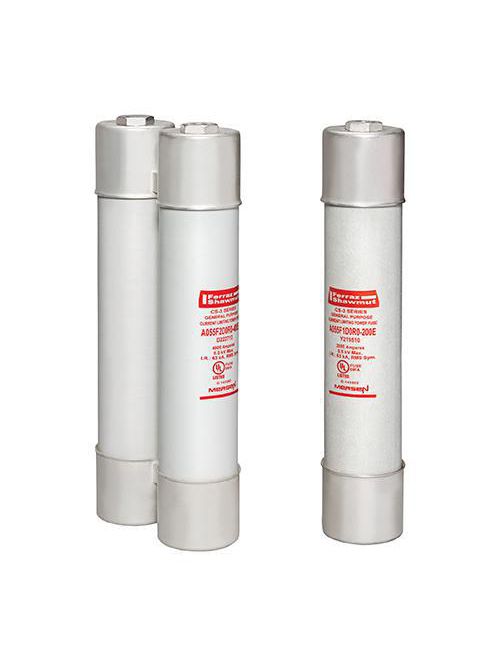

FERRAZ 9F62DDD100 GP EJO-1 FI 15.5K
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,848.02/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 9F62DDD100
North Coast Part # 606080

Features

  • Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment
  • Ferrule mounting for standard clips and interchangeability with other brands of fuses
  • Current-limiting for superior equipment protection
  • Non-venting for silent operation
  • Metal embossed catalog number and manufacturing date for lasting identification
  • Outdoor usage for the 9F62 and 9F60 type EJO

Certifications

  • Some UL listed to standard File E143362

Specifications

  • Blown-fuse indicator to give positive identification of open fuse: Amp-Trap
  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Ampere Rating: 100 A
  • Rated Voltage Ac Ul: 15500 V
  • Ac Max I R Breaking Capacity I1: 50 kA
  • Product Diameter: 3 in
  • Country Of Origin: MX
  • Product Line: 15.5kV Ferrule Mount Transformer Fuses
  • Product Brand: Amp-Trap®
  • Body Insulating Material: Epoxy
  • Connection Terminal Material: Silver-Plated Copper
  • Connection Terminal Type: Ferrule
  • Speed Characteristic: E-Rated
  • Mounting: Clip

Overview

UPC 78200139582
Family Brand Name Ferraz Shawmut
Item Long Description Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
GTiN 00782001395827
Length 18.88 in
Type General Purpose Fuses
Diameter 3 in
Terminal Type Ferrule
Applications Protection for 12 kV to 15.5 kV transformers or distribution systems.
Mounting Type Clip
Weight 10.1 lb
Frequency 50 Hz
Pkg Qty 1
Insulation Material Epoxy
TC Connection Ferrule
Amperage 100 Amp
Indicator Visual Indicator
Terminal Material Silver-Plated Copper
Rated Voltage AC 15500 V
Voltage 15500 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
