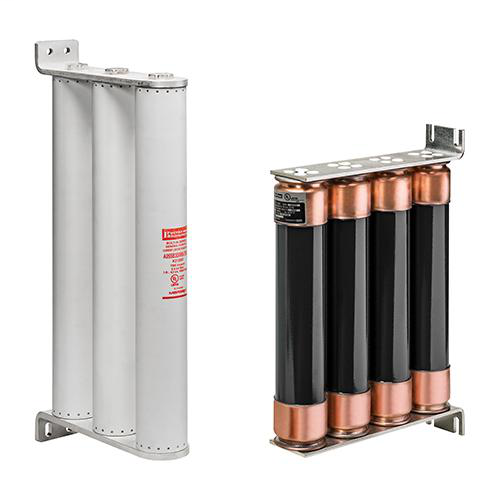

FERRAZ A055B2DSR0-600E 80274-FUSE,M
$10,773.79/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A055B2DSR0-600E
North Coast Part # 818119

Features

  • UL listed for compatibility with UL listed equipment
  • Bolt-In mounting for direct connection to bus or terminals
  • Current-limiting for superior equipment protection
  • Non-venting for silent operation
  • Metal embossed catalog number and manufacturing date for lasting identification
  • Outdoor usage for the 9F62
  • Blown-fuse indicator to give positive identification of open fuse
  • Amp trap: 2 lb tripped force - 0.50 Inch
  • 9F62: 0.125 lb tripped force – 0.20 Inch

Applications

  • Protection for 5.5kV to 15.5kV transformers or distribution systems

Specifications

  • Sell Pack Height: 5 in
  • Product Weight: 23 lb
  • Product Length: 22.12 in
  • Mounting: Bolted
  • Product Width: 3 in
  • AC Max I.R./Breaking Capacity: I1: 63 kA
  • Product Height: 8.37 in
  • Indication System: Yes
  • Sell Pack Width: 10.25 in
  • Sell Pack Length: 23.25 in
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Indication System Type: Visual Indicator
  • Speed/Characteristic: E-Rated
  • Ampere Rating: 600 A
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 5500 V

Approvals & Standards

  • Some UL Listed to standard File E143362
  • Approvals & Standards

Categories

Overview

UPC 78200180274
Family Brand Name Ferraz Shawmut
GTiN 00782001802745
Length 22.12 in
Width 3 in
Type General Purpose Fuses E-Rated
Terminal Type Blade
Applications Protection for 2.4kV to 5.5kV transformers or distribution systems.
Mounting Type Bolted
Height 8.37 in
Weight 23 lb
Pkg Qty 1
Insulation Material PolyTube
TC Connection Blade
Amperage 600 Amp
Indicator Visual Indicator
Terminal Material Silver-Plated Copper
Rated Voltage AC 5500 V
Voltage null
