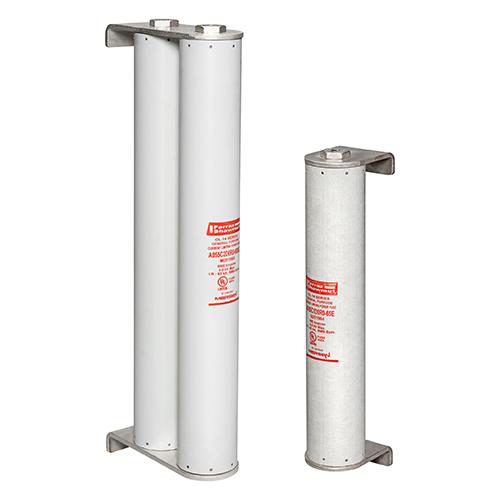

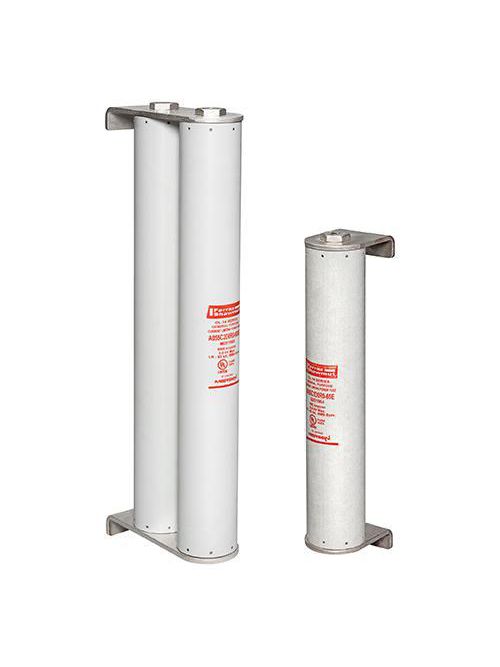

FERRAZ A055C1D0R0-300E 5.5KV 300E E
Product image thumbnail 0
Product image thumbnail 1
$4,777.89/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A055C1D0R0-300E
North Coast Part # 488094

Features

  • UL listed for compatibility with UL listed equipment
  • Clip-lock mounting for reliable high integrity connection into circuit
  • Current-limiting for superior equipment protection
  • Non-venting for silent operation
  • Metal embossed catalog number and manufacturing date for lasting identification
  • Blown-fuse indicator to give positive identification of open fuse
  • 2 lb tripped force - 0.50 Inch

Applications

  • Protection for 5.5kV to 15.5kV transformers or distribution systems

Approvals & Standards

  • Some UL Listed to standard File E143362

Specifications

  • Rated voltage AC UL: 5500 V
  • Ampere Rating: 300 A
  • Speed/Characteristic: E-Rated
  • Mounting: Clip-lock
  • AC Max I.R./Breaking Capacity: I1: 63 kA
  • Indication System: Yes
  • Indication System Type: Visual Indicator
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 12 lb
  • Product Diameter: 3 in
  • Product Length: 16.81 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 15.75 lb
  • Sell Pack Width: 5.5 in
  • Sell Pack Length: 28.12 in
  • Sell Pack Height: 4.5 in

Overview

UPC 78200180395
Family Brand Name Ferraz Shawmut
GTiN 00782001803957
Length 16.81 in
Type General Purpose Fuses E-Rated
Diameter 3 in
Terminal Type Blade
Applications Protection for 2.4kV to 5.5kV transformers or distribution systems.
Mounting Type Clip-lock
Weight 12 lb
Pkg Qty 1
Insulation Material PolyTube
TC Connection Blade
Amperage 300 Amp
Indicator Visual Indicator
Terminal Material Silver-Plated Copper
Rated Voltage AC 5500 V
Voltage 5500 VAC
