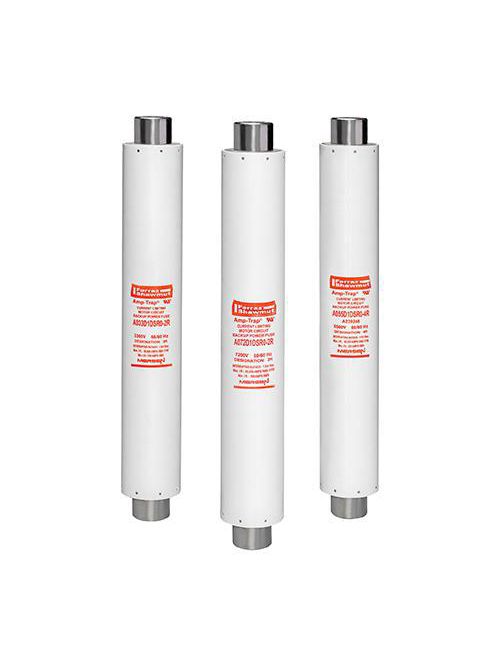

FERRAZ A055D1DSR0-5R 5.5KV,442mm,3D

Features

• R-Rating: R-Rated fuses are back-up fuses that operate as follows (Per ANSI C37.46-2000): An R-Rated fuse will melt in the range of 15 to 35 seconds at a value of current equal to 100 times the “R” rating
• Back-up Current-Limiting Fuses: A back-up current-limiting fuse is a fuse that can interrupt any current between its rated minimum interrupting current and its maximum interrupting current. Back-up fuses are not designed or intended to open under overload conditions
• Continuous Ampere Rating at 40°C: The continuous amp rating defines the thermal capability of the fuse per ANSI C37.46 and should not be the sole factor in fuse selection
• Spring-Reinforced Clip MR45 & Spring Ref.# L096472
• Fuse-Holder: SI 24/442 Ref # K209424 In compliance with IEC 282-1, DIN standard 43625
• Note: Ratings above 19R may be achieved by paralleling fuses. Please consult factory for details
• Clip mount DIN 45: R-Rated fuses with North American ANSI characteristics in a standard DIN 442mm size
• Current-limiting for superior equipment protection
• Blown fuse indicator provides positive identification of open fuse. 4.5lb tripping force - 1.0”

Applications

• Short circuit protection of medium voltage motors and motor controllers

Approvals & Standards

• UL recognized component File E93367

Specifications

• Rated voltage AC UL: 5500 V
• ROHS Compliant: Yes
• Speed/Characteristic: R-Rated
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 100 kA
• Indication System: Yes
• Indication System Type: Visual Indicator
• Connection/Terminal Material: Silver-Plated Brass
• Connection/Terminal Type: Clip
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 12.5 lb
• Product Diameter: 2.88 in
• Product Length: 20 in

Packaging Dimensions

• Sell Pack Quantity: 1 Each
• Sell Pack Weight: 13.13 lb
• Sell Pack Width: 4 in
• Sell Pack Length: 23.75 in
• Sell Pack Height: 4 in
