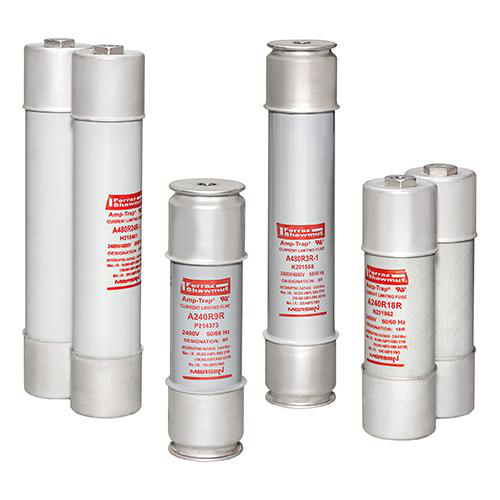

FERRAZ A072F2D0R0-18R 7.2KV 18R R R
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6,517.51/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A072F2D0R0-18R
North Coast Part # 602898

Features

  • The Amp-Trap and 9F60 R-Rated fuses are UL Recognized
  • Ferrule mounting for standard clips and interchangeability with other brands of fuses
  • Current-limiting for superior equipment protection
  • Metal embossed catalog number and manufacturing date for lasting identification
  • On the 4.8kV an optional hookeye mounted in the factory is available
  • On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612
  • Blown-fuse indicator to give positive identification of open fuse

Certifications

  • Amp-Trap: UL File E93367
  • 9F60: UL File E191980

Specifications

  • Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch
  • 9F60: 0.125 lb tripped force – 0.20 Inch
  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Rated Voltage Ac Ul: 7200 V
  • Ac Max I R Breaking Capacity I1: 50 kA
  • Country Of Origin: MX
  • Product Line: 7.2 kV Ferrule Mount Motor
  • Product Brand: Amp-Trap®
  • Body Insulating Material: GMG
  • Connection Terminal Material: Silver-Plated Copper
  • Connection Terminal Type: Ferrule
  • Speed Characteristic: R-Rated
  • Mounting: Clip

Overview

Family Brand Name Ferraz Shawmut
Product UPC 78200180513
GTiN 00782001805135
Length 15.88 Inch
Width 3 in
Size 2x3 x 15.88 Inches
Type Back-up current-limiting fuses R-Rated
Terminal Type Ferrule
Applications Short circuit protection of medium; voltage motors and motor; controllers.
Mounting Type Clip
Height 6.41 Inch
Weight 20 lb
Pkg Qty 1
Insulation Material GMG
TC Connection clips
Response Time R-Rated
Interrupt Rating 50 kA
Indicator Visual Indicator
Terminal Material Silver-Plated Copper
Rated Voltage AC 7200 V
Voltage 7200 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
